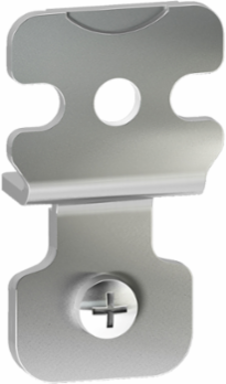

Schneider Electric NSYAEFPFXSC Stainless Steel Wall Fixing Lugs for Spacial S3D Enclosure, 42 mm Width, 74 mm Height

MPN: NSYAEFPFXSC
PPN: SCH-NSYAEFPFXSC

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$25.06

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

These stainless steel wall fixing lugs from Schneider Electric are designed specifically for use with the Spacial S3D enclosure, ensuring a secure and robust installation. With a width of 42 mm and a height of 74 mm, these lugs provide reliable support for mounting enclosures in various environments. Their durable construction not only enhances the longevity of your electrical installations but also offers resistance against harsh conditions, making them an essential accessory for any electrical box setup.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	fixing screws4 lug, 4 pre-mounted sealing gasket
Fixing Mode	screwed M8, screwed M6
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Mounting Location	rear of enclosure
Product Or Component Type	wall fixing support
Range	PanelSeT
Sustainable Packaging	No
Height Nominal	real: 74 mm
Accessory / Separate Part Category	fixing accessory
Package Weight(Lbs)	279.000 g
Take-back	No
Customs Code	8302423065

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Enclosure Nominal Dimensions	-, -
Permanent Permissible Load	250 kg, 551 lb(US)
Local Publishable Date	2026-04-18
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Material	stainless steel 304L
Product Availability	Stock - Normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	Yes
Pep Code	ENVPEP1001004EN
Width Nominal	real: 42 mm
Nbr. Of Units In Pkg.	1
Silicone-free	Yes
Warranty (In Months)	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Silicon Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1001004EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP1001004EN
