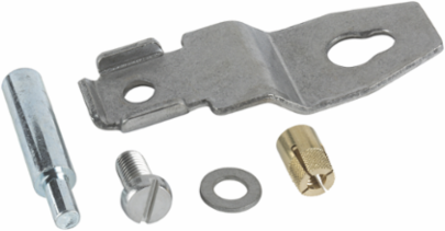

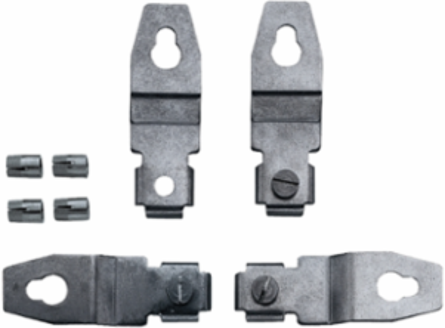

Schneider Electric NSYPFXPLM Thalassa PLM Wall Mounting Lugs Set of 4, Stainless Steel 40x155x80 mm

MPN: NSYPFXPLM
PPN: SCH-NSYPFXPLM

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$54.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Thalassa PLM set of 4 stainless steel wall mounting lugs for PLM3025 to 108. Multi purpose. 40 x 155 x 80 mm. Wall fixing support. Mounting by Top and bottom, on rear of the enclosure. Made in stainless steel. Fixing by screwed from the outside location.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain, United States
Width	6.1 in

Height	1.57 in
Depth	80 mm

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Enclosure Nominal Dimensions	-, -
Local Publishable Date	2026-04-18
Stocking Flag	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1916
China Rohs In Scope	No
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Device Application	multi-purpose
Energy Efficiency Optimized	False
Material	stainless steel
Permanent Permissible Load	100 kg horizontal position200 kg vertical position
Product Or Component Type	wall fixing support
Returnability	Yes
Pep Code	ENVPEP2202003EN
Height Useful	40 mm
Width Real	155 mm
Nbr. Of Units In Pkg.	1
Silicone-free	Yes
Warranty (In Months)	18

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Composition	fixing screws4 lug
Fixing Mode	screwed - from the outside
Mounting Location	top and bottom, on rear of the enclosure
Product Availability	Stock - Normally stocked in distribution facility
Range	PanelSeT
Sustainable Packaging	No
Height Nominal	40 mm
Width Nominal	155 mm
Accessory / Separate Part Category	fixing accessory
Package Weight(Lbs)	380.000 g
Take-back	No
Customs Code	8302423065

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc	Yes
Toxic Heavy Metal Free	Yes
Silicon Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2202003EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2202003EN
