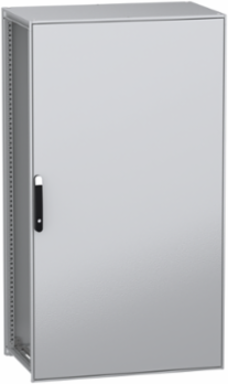

Schneider Electric NSYSFN181060 PanelSeT SFN Floor-Standing Enclosure, 1800x1000x600mm, IP55, IK10
- MPN: NSYSFN181060
- PPN: SCH-NSYSFN181060
CAD
$3469.74
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Crafted for robust protection and durability, this floor-standing enclosure from Schneider Electric is an ideal solution for housing sensitive electrical equipment. The NSYSFN181060 model, with its generous dimensions of 1800x1000x600mm, provides ample space while ensuring maximum security against dust and water ingress with its IP55 rating. Moreover, its IK10 rating guarantees resistance to impact, making it suitable for various demanding environments. This enclosure is designed to meet the diverse needs of commercial and industrial applications, ensuring your equipment is secured and well-protected.
Documentation & Downloads
Specifications
Additional
- IP Degree of Protection
- IP55 IEC 60529
- NEMA Degree of Protection
- NEMA 3R/12

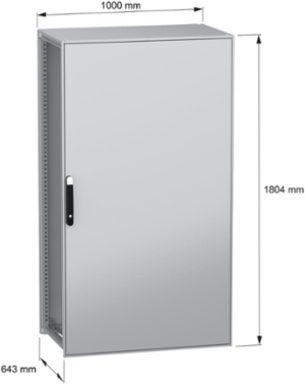

- Enclosure Nominal Width
- 1000 mm (39.37 in.)
- Enclosure Mounting
- Floor-standing
- Door Opening Side
- Reversible 120°
- Door Type
- Plain front
- Material
- Frame galvanized steel, uprights galvanized steel, door sheet steel, panels sheet steel, hinge zamak, handle polyamide 6 with 30% fiberglass
- Standards
- IEC 62208
- Device Composition

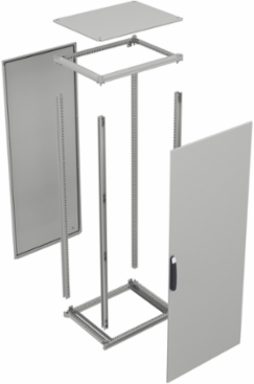

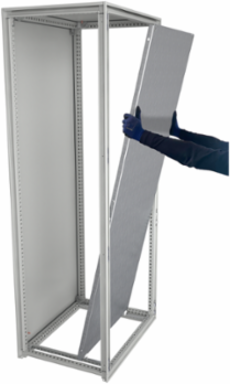

- 2 sliding rails, 4 mounting plate quick-fixing brackets, 1 structure, 1 door, 1 locking system with handle door, 1 rear panel, 1 roof
IK Degree of ProtectionIK10 IEC 62262
Enclosure Nominal Height1800 mm (70.87 in.)
Enclosure Nominal Depth600 mm (23.62 in.)
Number of DoorsFront 1

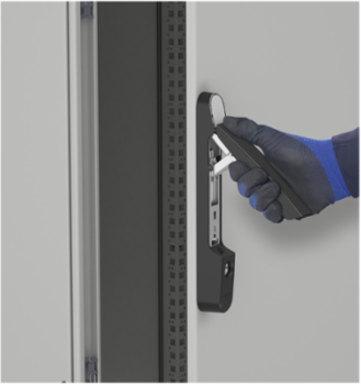

Lock Type4 points lock, handle with 5 mm double bar insert front door
Net Weight56.5 kg (124.56 lb)
Surface FinishEpoxy-polyester powder
Accessibility for OperationSides of enclosure, front, rear
