Weidmuller

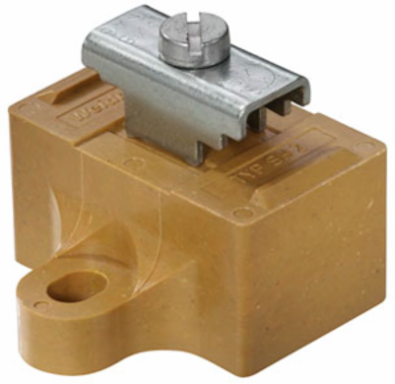

Weidmuller 0641720000 SH 2 S

SH 2 S
  • MPN: 0641720000
  • PPN: WDM-0641720000

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$8.76/ EA

Description

Accessories, Rail support, KrG

Specifications

Approvals

ROHS
Conform

Dimensions And Weights

Width
40 mm
Height
40 mm
Depth
35.5 mm
Net weight
26.9 g
Width (inches)1.575 inch
Height (inches)1.575 inch
Depth (inches)1.398 inch

Additional Technical Data

Type of mounting
when screwed in

Material Data

Material
KrG
Colour
medium yellow
Surface finishall others
UL 94 flammability ratingV-0

Classifications

ETIM 6.0
EC001166
eClass 9.0
27-40-06-07
eClass 10.0
27-40-06-07
ETIM 7.0EC001166
eClass 9.127-14-11-92
UNSPSC30-21-18-01

System Specifications

Version
For the mounting rails

Temperatures

Continuous operating temp., min.
-60 °C
Continuous operating temp., max.130 °C

Conductors For Clamping (Rated Connection)

Type of connection
Miscellaneous
