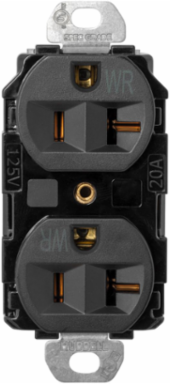

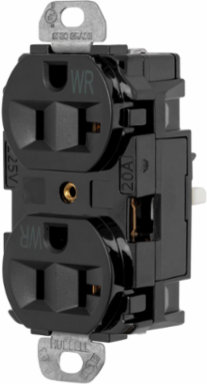

Hubbell Wiring Device-Kellems 5362STBKWRM1 EdgeConnect™ 20A Weather Resistant Duplex Receptacle, 3.28 Inch x 1.58 Inch x 1.38 Inch, Black
Hubbell Wiring Device-Kellems 5362STBKWRM1 EdgeConnect™ 20A Weather Resistant Duplex Receptacle, 3.28 Inch x 1.58 Inch x 1.38 Inch, Black
- MPN: 5362STBKWRM1
- UPC: 783585792514
- PPN: HBL-5362STBKWRM1
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.80/ EA
Description
EdgeConnect™, Straight Blade Duplex Receptacle , 20A, No ears, Black, Weather Resistant
Features

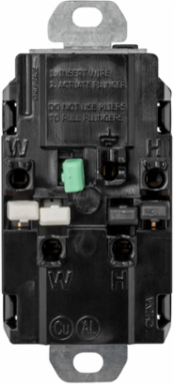

- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Simple color coded plungers for easy and quick wiring
- Use small screwdriver to lift plunger and rewire as needed
- Screwless termination for easier and faster installation.
Specifications
Specifications
- Country of Origin
- China
- Width
- 1.600 in
- Size
- 3.28x1.58x1.38
- Color
- Black
- Flammability
- UL 94 V-2
- Number of Poles
- 2-Pole
- Special Features
- Screwless termination for easier and faster installation.
- Type
- Short strap, no ears
- General Literature Asset 1 Display Text
- EdgeConnect™ Technology
- General Literature Asset 3 Display Text
- EdgeConnect™ Termination vs Standard Push Wire
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75 °C;(w/o impact)minimum -40 °C
- Class Code
- A04
- Harmonization Code
- 8536698000
- Sub Class Code
- A04A022
- Series
- EdgeConnect™ Series
- BOX SIZE
- 3.750x8.400x3.800 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585792514
- Case Weight
- 21.570 lb.
Current / Amperage Rating20 A
Industry Standard(s)UL Listed to UL498 File No. E2186, c-UL-us No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
ApplicationSpring clamp terminal strengthens over time providing a more reliable connection.
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-20R
Number of Wires3-Wire
StandardUL Listed to UL498 File No. E2186, c-UL-us No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant
Voltage Rating125 V
General Literature Asset 2 Display TextEdgeConnect™ Technology FAQ
Nema Rating5-20R
Number Of Wires3-Wire
StyleFinder Groove
Freight Class Code06168002
Image Actual Or RepresentativeA
MaterialThermoplastic/C
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
