Hubbell Wiring Device-Kellems 5362STWWRM1 EdgeConnect™ Straight Blade Duplex Receptacle, 20A, Weather Resistant, 3.28x1.58x1.38 Inch
Hubbell Wiring Device-Kellems 5362STWWRM1 EdgeConnect™ Straight Blade Duplex Receptacle, 20A, Weather Resistant, 3.28x1.58x1.38 Inch
- MPN: 5362STWWRM1
- UPC: 783585792439
- PPN: HBL-5362STWWRM1
- UNSPSC: 39121406
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.80/ EA
Description

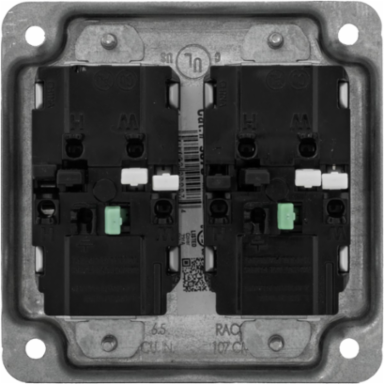

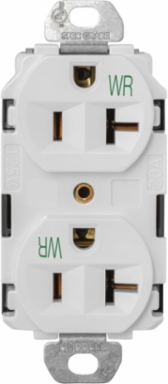

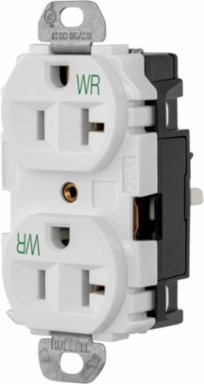

EdgeConnect™, Straight Blade Duplex Receptacle, 20A, No ears, White, Weather Resistant
Features

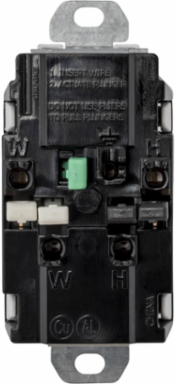

- Back wired srewless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Simple color coded plungers for easy and quick wiring
- Use small screwdriver to lift plunger and rewire as needed
- Screwless termination for easier and faster installation.
Specifications
- Amperage
- 20 A
- Number of Poles
- 2-Pole
- Dielectric Strength
- Withstands 2,000 V minimum
- Size
- 3.28 x 1.58 x 1.38 in
- Flammability
- UL 94 V-2
- Compliance
- UL Listed to UL498 File No. E2186, c-UL-us No. 42 File 285, CSA, Fed. Spec. W-C-596, NEMA WD-6 Compliant
- Country of Origin
- CN
Voltage125 V
Number of Wires3-Wire
Operating Temperature-40 °C to 75 °C
MaterialThermoplastic/C
NEMA Rating5-20R
ColorWhite
