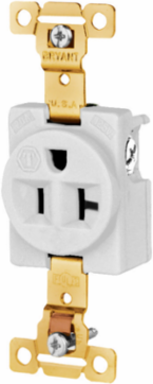

Bryant 5361WWR Weather Resistant Single Receptacle, 20A 125V, 2-Pole 3-Wire, White
- MPN: 5361WWR
- UPC: 781786670761
- PPN: HBL-5361WWR
- UNSPSC: 39121406
CAD
$61.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Single, Weather Resistant, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5- 20R, White, Single Pack
Features
- Single
- Weather Resistant
- Commercial/Industrial Grade
- 2-Pole 3-Wire Grounding
- 20A 125V
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 3.28 in x 1.38 in x 0.91 in
- Length
- 3.28 in
- Application
- Extra Heavy Duty Industrial Specification Grade
- Environmental Conditions
- Weather Resistant
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Weather Resistant
- Voltage Rating
- 125 V
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.15 lb.
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A020
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Height0.91 in
Amperage Rating20 A
ColorWhite
NEMA Rating5-20R
Number of Wires3-Wire
Size3.28 in x 1.38 in x 0.91 in
TypeSingle Receptacle
Wattage2500
Voltage Rating Description125 V
Width1.38 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleFinder Groove Face
Description - InvoiceWR RCPT, SING, IND, 20A 125V, WH
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE2.548x8.418x4.918 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786670761
Case Weight0.000
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
