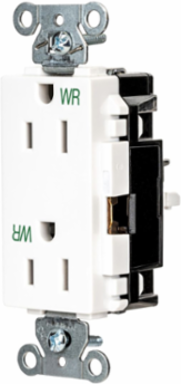

Hubbell Wiring Device-Kellems DR15STWWR EdgeConnect™ Decorator Receptacle, Weather Resistant, 20A 125V, 2-Pole 3-Wire
Hubbell Wiring Device-Kellems DR15STWWR EdgeConnect™ Decorator Receptacle, Weather Resistant, 20A 125V, 2-Pole 3-Wire
- MPN: DR15STWWR
- UPC: 783585730059
- PPN: HBL-DR15STWWR
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$29.37/ EA
Description
Straight Blade Devices, EdgeConnect™ , Decorator Receptacle, Commercial Grade, Weather Resistant, 2-Pole 3-Wire, 20A 125V, 5-20R, Screwless Terminal, White
Features
- Back wired screwless termination for faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- Triple and Double Wipe Contacts
- Easy access split circuit tab
- Screwless termination for easier and faster installation.
Specifications
Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 15 A
- Industry Standard(s)
- UL Listed to UL498 File No. E2186;Certified to CSA 22.2;No. 42 File 285, Fed. Spec. W-C-596, NEMA® WD-6 Compliant;UL 94 V-2
- Voltage Rating
- 125 V
- General Literature Asset 2 Display Text
- EdgeConnect™ Technology FAQ
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Temperature Rating
- Maximum continuous 75°C; minimum -40°C (w/o impact)
- Wire Size
- #14 (Solid and Stranded) - #10 (Stranded) Copper Wire Only
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material
- Thermoplastic/C
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
ColorWhite
Width1.580 in
Size3.28x1.58x1.38
General Literature Asset 1 Display TextEdgeConnect™ Technology
General Literature Asset 3 Display TextEdgeConnect™ Termination vs Standard Push Wire
Interrupt RatingCertified for current interrupting at full rated current A
Number Of Poles2-Pole
StyleStyle Line Decorator
TypeWeather Resistant
Class CodeA04
Harmonization Code8536698000
Sub Class CodeA04A060
SeriesEdgeConnect™ Series
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585730059
Case Weight0.000
Certifications
- Listings
- Terminals Identified in Accordance with UL 498 and CSA
