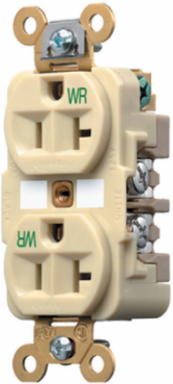

Hubbell Wiring Device-Kellems HBL5362IWR Weather Resistant Duplex Receptacle, 20A 125V, 2-Pole, 3-Wire, Ivory
- MPN: HBL5362IWR
- UPC: 783585320564
- PPN: HBL-HBL5362IWR
- UNSPSC: 39121406
CAD
$70.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Receptacle, Weather Resistant,Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R
Features
- Weather-resistance complies with national electrical code requirements
- Finder Groove Face
- One-piece brass integral ground strap
- Deep body design with circuit ID face
- Weather Resistant- Self Grounding
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Poles
- 2-Pole
- Wattage
- 2500 W
- Operating Temperature Range
- -40°C to 75°C
- Dimensions
- 3.28 in x 1.65 in x 1.19 in
- Wire Size
- #12 AWG to #10 AWG stranded or solid copper wire
- Material
- PBT Base, Nylon Face, Brass and Stainless Steel Hardware
- Color
- Ivory
Voltage125 VAC
Wires3-Wire
Dielectric Voltage2000 V minimum
NEMA Rating5-20R
Weight0.25 lb.
ConnectivityBack and Side Wired Screw Terminals
StandardsCSA 22.2 No.42; Fed. Spec. WC596; NEMA WD-6; UL 498
Country of OriginUS
