Schneider Electric LV429515 Short Terminal Shield for ComPacT NSX100/160/250, 3 Poles, IP40, 35mm Pitch
- MPN: LV429515
- PPN: SCH-LV429515
- UNSPSC: 39121601
CAD
$164.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

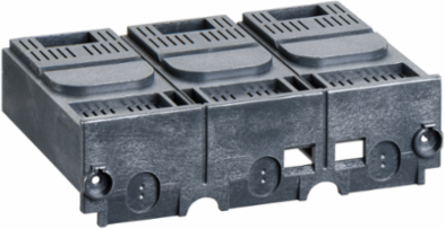

This is an insulation accessory for 3 poles Compact NSX 100/160/250 or EasyPact CVS 100/160/250. This short terminal shield protects against direct contact with power circuit It can be mounted upstream and downstream of fixed, plug-in or withdrawable devices. It allows to reach the clearance distance requested by IEC 60947-2 standard. The pitch is 35mm. It provides IP40 degree of protection and IK07 mechanical impact protection.
Features
- Schneider Electric green signature style for the entire ComPacT range
- Estimated 40% reduction of wiring time for panel builders
- Experience easier installation thanks to a new ergonomic front-plate design
- Gain the confidence that all auxiliaries are on the right spot
- Ergonomic new toggle for easier breaker manual operation
- Meet your needs with flexibility to achieve system efficiency during the design phase
- ETA trip unit offers protect overload& short-circuit conditions, measurements, display and current maximeters
- Samrt& Reliable: digital LCD screen can be set and display important currents parameters for protection
- Multiple international standards certificated
- Enhanced sustainability with Environmental Data program
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Weight | 58 g |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SC, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Poles Description | 3P |
| Carbon Footprint Of The Distribution Phase A4 | 0.011275883886773095, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.015800274270442043, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | kg CO2 eq., 0 |
| Local Publishable Date | 2025-08-13 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Applicability | Finished product |
| Weee Exclusion Rationale | Product/component not in scope – not electric/electronic device |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | terminal shields |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 1 |
| Returnability | Yes |
| Sustainable Packaging | No |
| Database Version | 2024-07 |
| Accessory / Separate Part Type | insulation accessories |
| Customs Code | 8538908180 |
| Silicone Free | Yes |
| Functional Unit Description | Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.& 10& 10Protect user against direct contact with power circuits (4 poles) by providing IP40 degree of protection and IK07 mechanical impact protection during a time period of 20 years. |
| Functional Unit Unit | Unit |
| Recyclability Potential In % | 2 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | ComPact NSX100...250, ComPact NSX100...250 DC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.1 kg CO2 eq., 0.12093919286053337 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.3 kg CO2 eq., 0.25719173208148494 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Service Catalog Item | Finished good |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Connection Pitch | 35 mm |
| Number Of Poles | 3P |
| Product Or Component Type | short terminal shield |
| Range | ComPacT |
| Software Version | v6.2.3 |
| Total Lifecycle Carbon Footprint | 0.4 kg CO2 eq. |
| Data Source | extrapolated product |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Product contains halogen above thresholds |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Take Back | No |
| Halogene Performance | Product contains halogen above thresholds |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2410034EN |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2410034EN |
| Pcr Version | PCR-4-ed4-EN-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Product Compatibility | circuit-breaker, plug-in base |
|---|---|
| Reach Free Shvc | Yes |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 0.4052070830992335 |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Range Of Product | ComPact NSX100...250, ComPact NSX100...250 DC |
|---|
| Product Or Component Type | short terminal shield |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|---|
| ETIM 10 | EC002498 |
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
