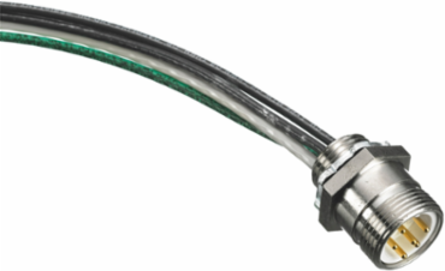

Hubbell Wiring Device-Kellems RM3004PA001 Linkosity Male Receptacle 30A 4W 1 Inch Grit 18000
- MPN: RM3004PA001
- UPC: 783585116280
- PPN: HBL-RM3004PA001
- UNSPSC: 32151905
CAD
$213.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Signal and Control Products, Linkosity, Male Receptacle, 30A 4W, 1'
Features
- Linkosity
- Male Receptacle
- 30A 4W
- 1'
- Green/Yellow/Black Wires
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Industry Standard(s)
- Listed to UL 2238 and UL 50E
- Number of Conductors
- 4
- Standard
- Listed to UL 2238 and UL 50E
- Wattage
- 18000
- Engineering Drawing 1 Display Text
- RM3004PA001 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Conductor Type
- Copper
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A28
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A28A300
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 47.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585116289
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Width11.250 in
Amperage Rating30 A
Special FeaturesGreen/Yellow/Black Wires
TypeAccessories For LINKOSITY®
Weight0.95 lb.
General Literature Asset 1 Display TextCircuit-Lock® Motor Disconnects
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Number Of Conductors4
StyleMale Receptacle
Description - InvoiceLINKOSITY MALE RCPT. 30A, 4W, 1'
Harmonization Code8536694020
MSDS FlagNo
ConstructionFabricated
SeriesMotorQuick/LINKOSITY
BOX SIZE6.900x18.400x18.800 (in)
Carton - Number of Sub Packs50
Carton - SCC-14 Next Lower Level Sub Pack783585116280
Case Weight13.900 lb.
Lowest Level UOMEach
Pallet Height41.400 in
Pallet Weight417.000 lb.
NAICS Code335931A107
