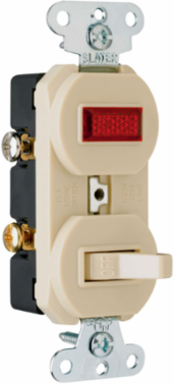

Pass & Seymour 692IG Single-Pole Combination Switch with Pilot Light, 15A, Ivory, 1.32 Inch Width
- MPN: 692IG
- UPC: 785007006094
- PPN: P-S-692IG
- UNSPSC: 39122211
CAD
$14.28
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Single-Pole Combination Switch with Pilot Light, 15A, Ivory, 1.32 Inch Width
Features
- Easily accessible break-off separate or common feed.
- Long-life red neon lamp in pilot light rated 1/25 Watt, 125V.
- Side wire #12 and #14 AWG.
- Two devices fit into the space of one.
- Grounding combination devices meet NEC Requirements.
- Tamper-resistant version features dual mechanical shutter system to help prevent insertion of foreign objects.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 4.06 in |
| Color | Ivory |
| Material | Thermoplastic |
| Amperage | 15.0 A |
| Type | Combination |
| Contact Configuration | N-O |
| Special Features | Easily accessible break-off for separate or common feed. Long-life red neon lamp in pilot light rated 1/25 Watt, 125V. Side wire #12 and #14 AWG. Two devices fit into the space of one. Grounding combination devices meet NEC Requirements. |
| Features | Combination |
| Voltage | 120.0 V |
| Terminal Accommodation | #14 AWG - #12 AWG |
| Wire Connection Type | Screw Terminals |
| Number of Gangs | 1 |
| Requires Neutral Wire | Yes |
| Connection Location | Side Only |
| Switch Type | Switch; Pilot |
| Load Rating | 15 A @ 120 VAC |
| Depth | 1.15 in |
|---|---|
| Width | 1.32 in |
| Finish | Satin |
| Product Line | Pass & Seymour |
| Number of Poles | Single Pole |
| Standard | UL20 |
| Environmental Conditions | Flammability: UL94 V2 |
| Operating Cycles | 30000.0 |
| Application Sector | Hospitality; Residential |
| Warranty Type | 1-Year Limited Warranty |
| Mounting Type | Wall Box |
| Wall Plate Included | No |
| Indoor/Outdoor | Indoor |
| Number of Switches | 1.0 |
| Throw Type | Single Throw |
| Load Type | LED; Universal; Fluorescent; Incandescent; CFL; Halogen; Xenon |
