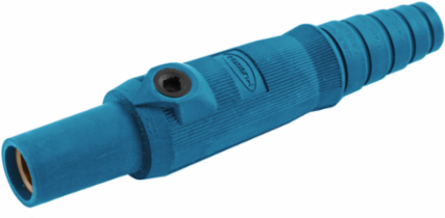

Bryant HBL15FBL Single Pole Female Plug, 150 Amp, 600V AC, Blue, 2.1 Inch Width
- MPN: HBL15FBL
- UPC: 783585458403
- PPN: HBL-HBL15FBL
- UNSPSC: 39121421
CAD
$43.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single Pole Products, Female Plug, 150 Amp Series, Blue
Features
- Extra Long non-conductive inner sleeve
- Turn and Lock Symbol aids in the mating of devices
- Easily Identifiable Cable with cut off points for secure fit
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.100 in
- Performance
- Electrical - Amperage Rating - 150A Maximum;Electrical - Voltage Ratings - 600V AC Maximum;250V DC Maximum;Mechanical - Product Identification - Ratings are a permanent part of device;Mechanical - Terminal Accommodation - #8 to #2 AWG
- Application
- Temporary Electrical Power
- Conductor Range
- #8 AWG to #2 AWG SC/PPC Wire
- Insulation
- Insulated Body
- Number of Conductors
- 1 Conductor
- Special Features
- Standard Product
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating Description
- 600V AC/DC
- Display Size
- Standard
- Number Of Conductors
- 1 Conductor
- Style
- Female
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Cord Mounted
- Material
- Brass and Non-Metallic
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.3 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585458402
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating150 A
Industry Standard(s)National Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
Amperage Rating150 A
ColorBlue
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingNon-NEMA
Number of Poles1-Pole
StandardNational Electric Code (NEC), ANSI/NFPA 70;UL and cUL Listed;UL Enclosure Types 3R, 4X, 12
TypePlugs
ConnectivitySet Screw
Nema RatingNon-NEMA
Number Of Poles1-Pole
Description - InvoiceSINGLE POLE SER. 15 FEM PLUG, 150A, BL
Harmonization Code8536698000
MSDS FlagNo
Current Rating150 A
Series15 Series
BOX SIZE5.000x10.000x9.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585458403
Case Weight4.850 lb.
Lowest Level UOMEach
Pallet Height45.000 in
Pallet Weight873.000 lb.
Certifications
- EU RoHS Indicator
- No
