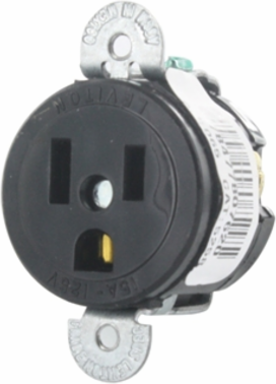

Leviton 5258-SS 15 Amp Commercial Grade Single Receptacle Outlet, NEMA 5-15R, Side Wire, Black
- MPN: 5258-SS
- UPC: 078477807620
- PPN: LEV-5258-SS
CAD
$15.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single Receptacle Outlet, Commercial Specification Grade, Short Strap, Tapped Mounting Holes, 15 Amp, 125 Volt, Side Wire, NEMA 5-15R, 2-Pole, 3-Wire - Black
Features
- Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Standards and Certifications
- ANSI
- C-73
- NOM
- 057
- Warranty
- 10-Year Limited
CSA C22.2 No. 42File 152105
UL498File E13399
Material Specifications
- Base Material
- Nylon
- Cover Material
- Nylon
- Line Contacts
- Plated Brass
- Terminal Screws
- Plated Steel
ColorBlack
Grounding ScrewPlated Steel
Strap MaterialGalvanized Steel
Mechanical Specifications
- Cutout Size
- 1.400" +/- 0.005"
- Screw Terminal Torque
- 14-18 in-lbs
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Torque Range
- 14-16 in-lbs
Product IDRatings are permanently marked on device
Terminal Accom.14-10 AWG
TerminationSide Wire
Product Features
- NEMA
- 5-15R
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Temperature RiseMax 30C after 100 cycles OL at 150 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
