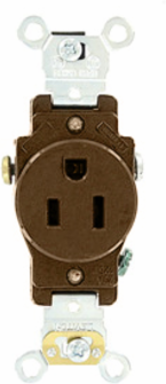

Leviton 5251 15 Amp Self-Grounding Single Receptacle Outlet, Industrial Grade, NEMA 5-15R
- MPN: 5251
- UPC: 078477130292
- PPN: LEV-5251
CAD
$11.34
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 125 Volt, Side Wire,NEMA 5-15R, 2-Pole, 3-Wire, Self-Grounding - Brown
Features
- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL 498
- File E13399
- UL498
- File E13399
CSA C22.2 No. 42File 152105
NOM057
UL Fed Spec WC-596File E13399
Warranty10-Year Limited
Material Specifications
- Body Material
- Thermoplastic Nylon
- Color
- Black
- Ground Clips
- Brass
- Line Contacts
- Phosphor Bronze
- Terminal Screws
- Plated Brass
Clamp NutsZinc-Plated Steel
Face MaterialThermoplastic Nylon
Grounding ScrewPlated Steel
Strap MaterialGalvanized Steel with Riveted Ground Contacts
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Torque Range
- 14-16 inch pounds
Terminal Accom.14-10 AWG
TerminationSide Wire
Product Features
- Device Type
- Single Receptacle Outlet
- Grade
- Heavy-Duty Industrial Specification Grade
Feature 4Smooth Face
Environmental Specifications
- Flammability
- Rated V-2 per UL 94
Operating Temperature-40°C to 60°C
Electrical Specifications
- Amperage
- 15 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 2
- Voltage
- 125 VAC
Current LimitingFull Rated Current
GroundingSelf-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1/2 HP
