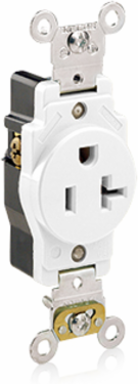

Leviton 5361-W Industrial Grade 20 Amp Self-Grounding Receptacle, NEMA 5-20R, White
- MPN: 5361-W
- UPC: 078477498798
- PPN: LEV-5361-W
CAD
$33.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Features
- Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Operating Temperature
- -40°C to 60°C
- Dielectric Voltage
- 2000 V per UL498
- Temperature Rise
- Max 30°C after 250 cycles OL at 200% rated current
- Pole
- 2
- Terminal Accommodation
- 14-10 AWG
- Screw Terminal Torque
- 14-18 in-lbs
- Line Contacts
- Brass Triple-Wipe
- Grounding Screw
- Plated Steel
- Clamp Nuts
- Galvanized Steel
- Face Material
- Thermoplastic Nylon
- Flammability Rating
- V-2 per UL 94
- Grounding
- Self-Grounding
- Grade
- Heavy-Duty Industrial Specification Grade
Voltage125 VAC
AC Horsepower Rating1 HP
Current LimitingFull Rated Current
Wire3
TerminationBack or Side Wire
Torque Range14-16 in-lbs
Device TypeSingle Receptacle Outlet
Ground ClipsBrass
Terminal ScrewsPlated Brass
Strap MaterialZinc-Plated Steel
MaterialThermoplastic Nylon, Brass, Galvanized Steel, Zinc-Plated Steel
StandardsANSI C-73, CSA C22.2 No. 42, UL498
ColorWhite
Country of OriginPlease Contact Customer Service
