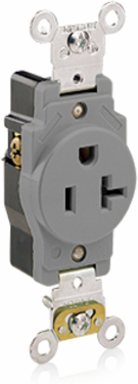

Leviton 5361-GY 20 Amp Heavy-Duty Industrial Grade Single Receptacle, NEMA 5-20R, Gray
- MPN: 5361-GY
- UPC: 078477498767
- PPN: LEV-5361-GY
CAD
$33.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This heavy-duty industrial grade single receptacle from Leviton is expertly crafted to endure the demanding conditions commonly found in industrial environments. Designed with resilience in mind, it is suitable for various applications, including factories, schools, hospitals, and commercial office buildings. The versatile configuration of the receptacle, conforming to the NEMA 5-20R standard, makes it an essential choice for electrical contractors looking for reliability and performance. Available in a sleek gray finish, this receptacle not only meets rigorous requirements but also integrates seamlessly into any workspace, ensuring that power access is both safe and convenient.
Features
- Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD 1 & WD 6 |
| UL Fed Spec WC-596 | File E13399 |
| Warranty | 10-Year Limited |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
| UL498 | File E13399 |
Material Specifications
| Body Material | Thermoplastic Nylon |
|---|---|
| Color | Gray |
| Ground Clips | Brass |
| Line Contacts | Brass Triple-Wipe |
| Terminal Screws | Plated Brass |
| Clamp Nuts | Galvanized Steel |
|---|---|
| Face Material | Thermoplastic Nylon |
| Grounding Screw | Plated Steel |
| Strap Material | Zinc-Plated Steel |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range | 14-16 inch pounds |
Product Features
| Device Type | Single Receptacle Outlet |
|---|---|
| Grade | Heavy-Duty Industrial Specification Grade |
| Feature 4 | Smooth Face |
|---|
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| At Rated Voltage | 1 HP |
|---|
