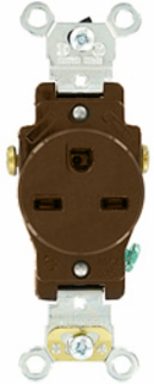

Leviton 5651 15 Amp Single Receptacle Outlet, Heavy-Duty, NEMA 6-15R, Self-Grounding, 250 Volt
- MPN: 5651
- UPC: 078477130391
- PPN: LEV-5651
CAD
$14.64
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Single Receptacle Outlet, Heavy-Duty Industrial Specification Grade, Smooth Face, 15 Amp, 250 Volt, Side Wire,NEMA 6-15R, 2-Pole, 3-Wire, Self-Grounding - Brown
Features
- Leviton's line of Heavy-Duty Industrial Grade Receptacles are available with a number of wiring options and features. These heavy-duty receptacles are engineered for fine appearance and top performance in demanding commercial and institutional applications using a durable, thermoplastic face and impact-resistant construction.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL Fed Spec WC-596 | File E13399 |
| Warranty | 10-Year Limited |
| CSA C22.2 No. 42 | File 152105 |
|---|---|
| NOM | 057 |
| UL498 | File E13399 |
Material Specifications
| Body Material | Thermoplastic Nylon |
|---|---|
| Face Material | Thermoplastic Nylon |
| Grounding Screw | Plated Steel |
| Strap Material | Galvanized Steel with Riveted Ground Contacts |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Ground Clips | Brass |
| Line Contacts | Phosphor Bronze |
| Terminal Screws | Plated Brass |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
| Torque Range | 14-16 inch pounds |
| Terminal Accom. | 14-10 AWG |
|---|---|
| Termination | Side Wire |
Product Features
| Color | Brown |
|---|---|
| Feature 4 | Smooth Face |
| Device Type | Single Receptacle Outlet |
|---|---|
| Grade | Heavy-Duty Industrial Specification Grade |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 15 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 250 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| At Rated Voltage | 1-1/2 HP |
|---|
