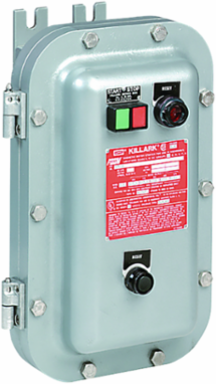

Killark B7010SK Size 0 Magnetic Motor Starter 3 Pole 3 Wire 480V Coil, 5 hp, NEMA 3/4/4X
- MPN: B7010SK
- UPC: 783936095523
- PPN: HBL-B7010SK
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Size 0, Square D, 3 Pole 3 Wire Magnetic Motor Starter 480V Coil
Features
- Type 4, 4X rated – providing protection from hose directed water and corrosion.
- Universal mounting pan, pre-drilled to facilitate easy field installation of starters.
- Provision for grounding supplied as standard.
- More wiring room meets latest NEC wire bend requirements.
- Quick release, captivated, 316 grade stainless steel cover bolts.
- Flange sealing gasket located to the inside of cover bolt to prevent water seepage into enclosure through bolt holes.
- Hinged cover provided as standard for an extra measure of safety and convenience.
- Breaker (MCP) handle can be padlocked in “ON” or “OFF” position.
- Provisions provided for drain and breather plus conduit openings for power and control.
- Reset button provided as standard.
- Two control operator openings provided plugged as standard.
- Additional openings can be factory or field drilled.
- Copper-free (less than 4/10 of 1% copper) enclosure.
- Bolt on bi-directional ductile mounting lugs.
- Killark's B7 Series of Hazardous Location Magnetic Motor Starters provide motor control utilizing single-speed, non-reversing NEMA-type starters. Rated for indoor and outdoor applications, the copper-free aluminum construction is ideal for harsh and hazardous environments. Standard starter manufacturer configurations include Eaton (Cutler Hammer) AN16 Series and Schneider (Square D) 8536 Series motor starters.
Specifications
Key Specifications
- Country of Origin
- Mexico
- Horsepower - Maximum
- 5
- Voltage Rating
- 600 V
- Nema Rating
- 3, 4, 4X
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- Sub Class Code
- D25D253
- UL File Number
- E83696
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936095523
Hazardous Rating(s)Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Size0
Coil Voltage480V
ARRA CompliantContact Manufacturer
Description - InvoiceSZ 0, SD 3P3W MAG MOTOR STRTR 480V COIL
Harmonization Code8536504000
MSDS FlagNo
CSA File NumberLR11714
SeriesB7 Series
BOX SIZE(in)
NAICS Code3353146101
