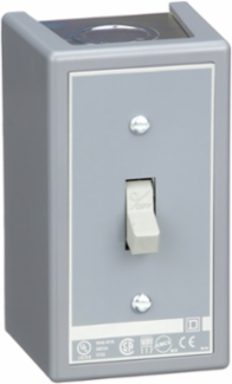

Square D 2510KG2 Manual Motor Switch, 30A, 3 Pole, 10HP at 575VAC, NEMA 1 Enclosure
- MPN: 2510KG2
- UPC: 785901554509
- PPN: SCH-2510KG2
CAD
$271.55
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

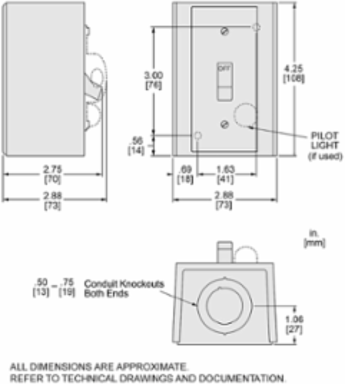

2510K manual motor switches are Intended for industrial, commercial and residential applications. These switches are for applications where overload protection is not required or is provided separately. Manual motor switches provide manual On Off control of small motors. They are designed for single or three phase AC motors. This nonreversing manual switches is toggle operated. The maximum operational voltage is 600 VAC and 250 VDC. This three pole switch is rated for 2 HP at 115VAC, 7.5 HP at 230VAC, 10 HP at 460VAC, 10 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This NEMA 1 general purpose enclosure is a surface mounting enclosure. The enclosure has has a 0.5 and 0.75 knockout on the top and bottom. The enclosure is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. It weighs 0.84 lb. This device is UL Listed and CSA certified.
Features
- This Type K manual motor starting switch features a robust 3-pole configuration designed explicitly for high-power, multi-phase systems. It acts as a direct, unified controller that connects or disconnects all three hot lines simultaneously, ensuring balanced electrical distribution and preventing dangerous single-phasing events across downstream 3-phase motors.
- Engineered for high-capacity power delivery, this 30A continuous-duty switch operates flawlessly at up to 600V AC. It delivers an impressive 10 hp rating at 460-575V AC (and up to 7.5 hp at 230V AC), giving facility managers and plant electricians the exact heavy-duty capacity required to operate industrial ventilation fans, production conveyors, and heavy processing pumps.
- Housed inside a painted sheet-steel surface-mount box, this switch comes fully enclosed in a NEMA 1 general-purpose protective shell. This rugged casing protects internal contacts from workplace dust, airborne debris, and accidental tools-in-hand contact in commercial workshops, mechanical rooms, and production floors, while pre-punched 0.5-inch and 0.75-inch knockouts simplify conduit routing.
- Featuring a high-torque, non-reversing industrial manual toggle operator handle, this starter provides immediate, positive tactile feedback when switched. The heavy-duty "ON/OFF" toggle switch ensures non-fumble, clear-state operation even for workers wearing thick industrial safety gloves, providing an unmistakable visual status of the machine's running condition from a distance.
- This Type K switch functions as a direct disconnector designed for applications where overload protection is not required or is provided by an independent upstream device. By focusing purely on reliable, uninhibited on/off circuit control, it avoids the nuisance thermal tripping caused by fluctuating ambient temperatures in hot plant environments, saving hardware space and reducing upfront costs.
- Equipped with industrial-grade screw clamp terminals, this switch ensures an enduring, low-resistance connection that accepts solid or stranded copper conductors from 14 AWG up to 10 AWG. The heavy-duty backing screws maintain tight compression over time, preventing localized electrical resistance heating and loose wire connections caused by persistent machinery vibration.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- K
Product Or Component TypeSingle Unit Manual Switch
Complementary
- Height
- 4.25 in
- Net Weight
- 0.38 kg
- Motor Starter Type
- non reversing
- Poles Description
- 3P
- Cable Entry
- 0.5" and 0.75" knock-outs (top and bottom)
- Awg Gauge
- AWG 14...AWG 10 copper
- Depth
- 2.75 in
- [Ue] Rated Operational Voltage
- 600 V AC || 230 V DC
Network Number Of Phases3 phases
Control Typetoggle
Local Signallingno indicator
Electrical Connectionscrew clamp terminals
[In] Rated Current30 A
Width2.44 in
Motor Power Hp2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
Environment
- Product Certifications
- UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Nema Degree Of ProtectionNEMA 1 plastic standard size
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Pvc Free
- Yes
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
Reach RegulationReference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot compliant
