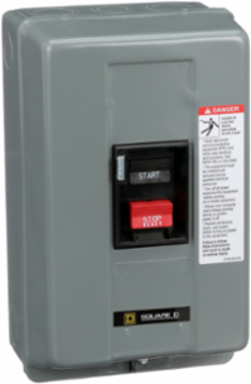

Square D 2510MCG2 Manual Starter 5HP, NEMA M-1P, 600VAC, 2 Pole, No Indicator, NEMA 1

MPN: 2510MCG2
UPC: 785901801320
PPN: SCH-2510MCG2

$609.08

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

2510M and T integral horsepower manual motor starters provide overload protection and On Off control for small AC motors. These non-reversing integral horsepower manual starters are used in a variety of industrial and commercial installations. Typical applications include fans, conveyors, pumps, and small machine tools. This starter has Start-Stop push buttons. This NEMA Size M-1P two pole starter is rated for 3 HP at 115 VAC and 5 HP at 230 VAC single phase. A melting alloy thermal unit is used with this manual starter to sense over current conditions. This thermal unit is ordered separately to match motor data. The pressure wire clamp terminals will accept 14 to 6 AWG copper wire. This starter has no pilot light indicator. A NEMA 1 general purpose surface mount enclosure is used to protect this integral horsepower manual starter. This is a painted sheet steel enclosure. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.22 inches deep. 2510M integral horsepower starters are UL listed and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico

Depth	5.22 in

Complementary Attributes

Maximum Horse Power Rating	3-3 hp 115 V AC, 1 phase5-5 hp 230 V AC, 1 phase

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CSA LR60905 class 3211 05, UL listed file E42243 CCN NLRV
Carbon Footprint Of The End-of-life Phase [C1 To C4]	4 kg CO2 eq., 4.152624627812178
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	16 kg CO2 eq., 15.588517466871675
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Awg Gauge	14 AWG...6 AWG copper
Energy Efficiency Optimized	False
Motor Starter Type	non reversing
Number Of Thermal Units Required	1
Product Or Component Type	Manual Starter
Returnability	Yes
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	25 kg CO2 eq.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	74
Width Nominal	6 in
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536504000

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.7687069965179234, 0.8 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.3182536031110671, 0.3 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	4 kg CO2 eq., 4.188085850599413
Local Publishable Date	2025-11-13
Stocking Flag	N
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Electrical Connection	box lugs
Local Signalling	no indicator
Number Of Poles	2P
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	M
Software Version	v6.2.5-6
Thermal Overload Type	melting alloy
Pep Code	ENVPEP2507018EN
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	10 in
[Ue] Rated Operational Voltage	600 V AC
Package Weight(Lbs)	2.66 kg
Warranty (In Months)	18

Environment Attributes Main

Take Back	No
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2507018EN
Nema Degree Of Protection	NEMA 1 painted sheet steel
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2507018EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Reach Free Shvc	Yes
China Rohs Regulation	X
Carbon Footprint	25.016188544912257
Eu Rohs Directive	Compliant By Exemption
Nema Size	M-1P
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
