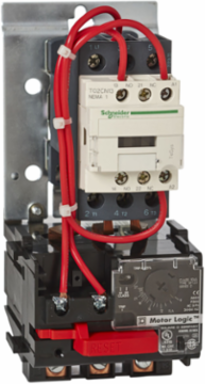

Schneider Electric T36BN13G7 TeSys N Motor Starter 3 Pole Size 0 18A 120 VAC Open

MPN: T36BN13G7
UPC: 785901990284
PPN: SCH-T36BN13G7
UNSPSC: 39121529

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$903.66

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

TeSys N contactors and starters conform to NEMA ICS2 standards. The NEMA size is printed directly on the face of the contactor. The 3 pole NEMA size 0 motor starter has an 18 amperage continuous current rating. It also has ratings of 3 HP at 200 to 230 Vac and 5 HP at 460 and 575 VAC poly phase. This motor starter has a Motor Logic solid state overload relay with a Class 10/20 rating. The overload is adjustable from 6 to 18 amperes. The starter has a 120 VAC replaceable coil with common control. Starter has 1 normally open and 1 normally closed auxiliary contact. This starter is not in an enclosure. Motor starter is UL listed and CSA Certified.

Features

TeSys N Starters are available in NEMA Sizes 00-7 for non-reversing applications
TeSys N Starters are available in NEMA Sizes 00-5 for reversing applications
Combining NEMA robustness and IEC compactness
TeSys N Starters conform to NEMA ICS2 standards and offer high reliability with long mechanical and electrical life
These NEMA starters use as accessories in the TeSys family of NEMA and IEC products for simplicity and reduced inventory
Offering a DC control voltage in a NEMA offer. Size 00-4 starters are available with a 24 Vdc control voltage
Pre-mounted on a baseplate with busbar interconnection for quick, simple installation
Starters use Motor Logic solid state overload relays in Class 10/20 selectable with a wide 3:1 current adjustment range

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	France

Complementary Attributes

Rated Power In Hp	3 HP 200 V AC, 3 HP 230 V AC5 HP 460 V AC, 5 HP 575 V AC
Line Rated Current	18 A
Ue Rated Operational Voltage	600 V AC

Control Circuit	common control circuit
Uc Control Circuit Voltage	120 V AC

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL Listed, CSA
Local Publishable Date	2025-12-16
Weee Scope	In
Scope Perimeter	Outside of Europe
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Electrical Connection	screw clamp terminals
Motor Starter Type	non reversing
Phase	3 phase
Product Or Component Type	starter
Returnability	Yes
Thermal Overload Type	solid state Motor Logic class 10/20 6-18 A
Customs Code	8536504000

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2011
China Rohs In Scope	No
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Energy Efficiency Optimized	False
Number Of Poles	3P
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range Of Product	TeSys N
Sustainable Packaging	No
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Reach Free Shvc	Yes
Mercury Free	Yes
Nema Degree Of Protection	not rated (open device)
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
