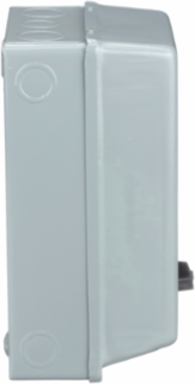

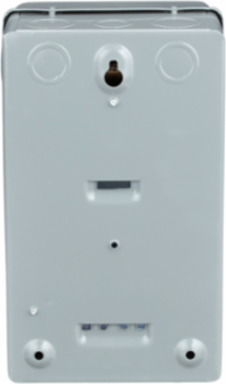

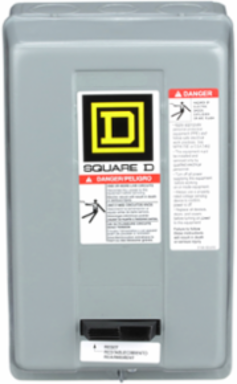

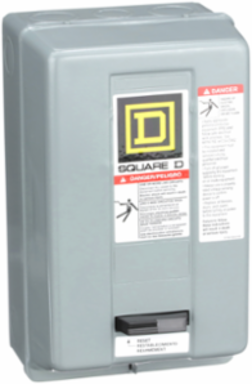

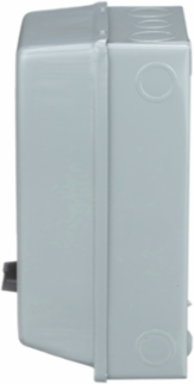

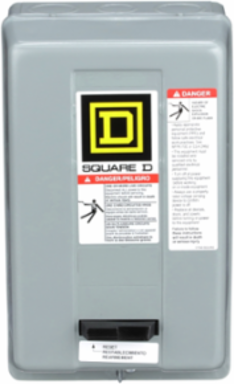

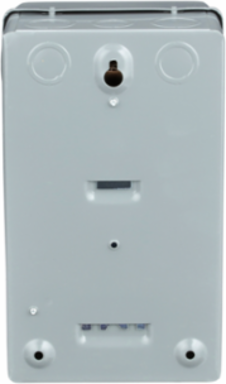

Square D 8536SBG2V02S NEMA Motor Starter Size 0, 18A, 5HP, 3 Phase, NEMA 1 Enclosure

MPN: 8536SBG2V02S
UPC: 785901864608
PPN: SCH-8536SBG2V02S

$969.03

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 0 non-reversing starter has an 18 ampere rating. NEMA Size 0 motor starters have 3 phase ratings of 3 HP at 200 and 230 VAC and 5 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
Depth	141 mm

Compliance	TAA Compliant

Complementary Attributes

Rated Power In Hp	3 HP 200 V AC, 3 HP 230 V AC5 HP 460 V AC, 5 HP 575 V AC
Line Rated Current	18 A

Control Circuit	separate control circuit

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	UL Listed, CSA, NEMA
Carbon Footprint Of The End-of-life Phase [C1 To C4]	6 kg CO2 eq., 5.8400137340997595
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	24 kg CO2 eq., 24.087950006602348
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Type	no control units
Energy Efficiency Optimized	False
Motor Starter Type	non reversing
Phase	3 phase
Product Or Component Type	motor starter
Returnability	Yes
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	490 kg CO2 eq.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	73
Width Nominal	152 mm
[Ue] Rated Operational Voltage	600 V AC
Package Weight(Lbs)	3.366 kg
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	2.801857306863856, 3 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.3647541444220988, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	457 kg CO2 eq., 456.9182182837521
Local Publishable Date	2026-03-25
Stocking Flag	N
Weee Scope	In
Scope Perimeter	Outside of Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
China Rohs In Scope	No
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Control Circuit	separate control circuit
Electrical Connection	screw clamp terminals
Local Signalling	without pilot light
Number Of Poles	3P
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	S
Software Version	v6.2.4
Thermal Overload Type	melting alloy 3
Pep Code	ENVPEP2506062EN
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3-2023 12 08
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	254 mm
[Uc] Control Circuit Voltage	110 V AC 50 Hz120 V AC 60 Hz
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536504000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP2506062EN
Nema Degree Of Protection	NEMA 1 painted sheet steel
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-09-01
Psr Version	PSR-0005-ed3-2023 12 08

Take Back	No
Toxic Heavy Metal Free	Yes
Carbon Footprint	490.0127934757402
Eu Rohs Directive	Compliant
Nema Size	0
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2506062EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
