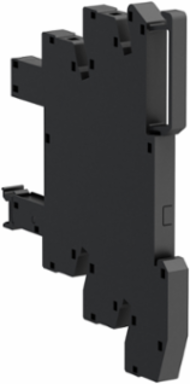

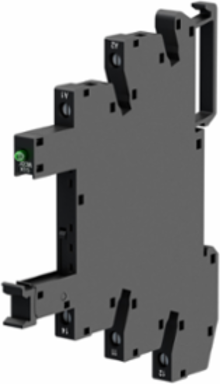

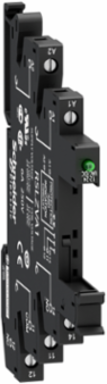

Schneider Electric RSLZVA2 Harmony Electromechanical Relay Socket, LED Indicator, 48-60V AC/DC, 6.2mm Width
- MPN: RSLZVA2
- PPN: SCH-RSLZVA2
CAD
$12.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RSLZ plug-in relay socket has a coil control voltage of 48 - 60V ac/dc." "It has large choice of number of contacts for high rated current use." "It also offers LED indicator and protection circuit." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "One of the slimiest socket on the market, with 6.2mm width, it can be installed nearly anywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France
Physical Attributes
- Cad Overall Depth
- 95 mm
- Cad Overall Width
- 6.2 mm
Cad Overall Height78.6 mm
Complementary Attributes
- Rated Operational Voltage Limits
- 43.2...57.6 V, 54...72 V
Line Rated Current6 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Switching Voltage
- 48 V AC/DC, 60 V AC/DC
- Certificate Agency
- GOST, CSA
- [Ue] Rated Operational Voltage
- < 300 V AC, < 300 V AC< 300 V AC, < 300 V AC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0034835806, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0001632537, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1405004EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- RSLZ
- Contacts Type And Composition
- 1 C/O
- Fixing Mode
- plastic compression spring (35 mm symmetrical DIN rail)
- Marking
- CE
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony Electromechanical Relays
- Sale Per Indivisible Quantity
- 10
- Software Version
- EIME v5.7.0.4
- Total Lifecycle Carbon Footprint
- 0.9 kg CO2 eq.
- Database Version
- 2018-09
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards.
- Functional-unit Unit
- unité (unit)
- Energy Model - Manufacturing [A1-a3]
- Energy model used: China
- Energy Model - Use [B6]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Recyclability Potential In %
- 70
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV
- Package Weight(Lbs)
- 27 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Tightening Torque< 0.4 N.m M2.5, < 0.4 N.m M2.5< 0.4 N.m M2.5, < 0.4 N.m M2.5
[Uc] Control Circuit Voltage48 V, 60 V
Connections - Terminalsscrew connectors, connector, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endconnector, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) solid without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0068904269
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.8427298224
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Terminal Arrangementseparate
Device Short NameRSLZ
Group Of ProductRSL_CON_48-60
Overvoltage CategoryIII
Product Or Component Typesocket
ReturnabilityNo
Shape Of Pinflat
Sustainable PackagingYes
Pep CodeENVPEP1405004EN
Pep Verification Date2018-09-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; <lt/> 1kV; EU-27
[Ith] Conventional Free Air Thermal Current6 A
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536698000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C
- Product Compatibility
- plug-in relay RSL 1 C/O 48 V DC, plug-in relay RSL 1 C/O 60 V DC
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1405004EN
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1405004EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint0.8532670835
Environmental DisclosureENVPEP1405004EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2018-09-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- socket
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001456
ETIM 9EC001456
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
