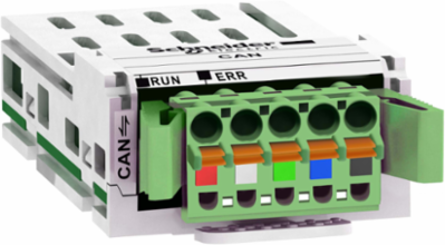

CANopen Communication Module with 5-Way Terminal Block
Schneider Electric

Schneider Electric VW3A3628 CANopen Communication Module with 5-Way Terminal Block

  • MPN: VW3A3628
  • PPN: SCH-VW3A3628
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $241.77

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Schneider Electric Altivar CANopen open style communication module has 1 x 5-way screw connector. It complies with CANopen open style communication protocol. This communication module enables integration of your drive in your CANopen open style process control network. It is simple to install and remove from Altivar drives thanks to its modular withdrawable design. It is compatible with Altivar Machine ATV320, Altivar 32, Altivar Machine ATV340, Altivar Process ATV600 (ATV630, ATV650)Altivar Process ATV900 (ATV930, ATV950) and Lexium 32. Removable module allows last minute decisions on drive communication protocol, facilitates installation project management. This range is compatible with Altivar Process ATV900, Altivar Process ATV600, Lexium 32, Altivar Process Modular, Altivar Machine ATV340 except Sercos drives, Altivar 32 and Altivar Machine ATV320 and Lexium 32 servo drives. Altivar variable speed drives and soft starters deliver top performance in motor control applications across machines, processes and buildings.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Germany, France, United States

    Communications & Management Attributes

    Communication Port Protocol
    CANopen, CANmotion

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Carbon Footprint Of The Distribution Phase [A4]
    0.0087735149, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.000016793, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    64 kg CO2 eq., 64.379
    Local Publishable Date
    2026-01-12
    Stocking Flag
    N
    Serviceability
    No
    Use Carbon Footprint
    64.379
    Scope Perimeter
    At least in Europe
    End Of Life Doc Ref
    ENVEOLI1407005EN
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1901
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Advanced
    Market Segmentation
    Industrial
    Electrical Connection
    spring terminal 5-way terminal block, CANopen, CANmotion
    Product Or Component Type
    communication module
    Returnability
    Yes
    Sustainable Packaging
    No
    Pep Code
    ENVPEP1407005EN
    Pep Verification Date
    2020-10-01
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    to integrate communication functionalities to the LXM32 Controller 100% of the time for 10 years
    Reference Lifetime, In Y
    10
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Indonesia
    Energy Model - Use [B6]
    Electricity mix; AC; < 1kV; EU-27
    Accessory / Separate Part Category
    communication accessories
    Package Weight(Lbs)
    68.0 g
    Warranty (In Months)
    18
    Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
    730.75
    Net Use Of Fresh Water (M3) Operational Energy Use [B6]
    233.43
    Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    1122.3
    Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
    163.5
    Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
    163.5
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0383307921
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.4721237624
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    TraceabilityNo
    Weee ScopeOut
    Eoli Availability DisplayYes
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Product AvailabilityStock - Normally stocked in distribution facility
    Range Of ProductAltivar
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint68 kg CO2 eq.
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Energy Consumption On Product Lifetime, In Kwh131.4
    Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
    Nbr. Of Units In Pkg.1
    Take-backNo
    Air Pollution (M3) Operational Energy Use [B6]2770.9
    Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]64.379
    Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]240.03
    Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]1285.8
    Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1122.3
    Water Pollution (M3) Operational Energy Use [B6]2656.5

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Carbon Footprint
    67.8982448623
    Environmental Disclosure
    ENVPEP1407005EN
    Packaging Made With Recycled Cardboard
    No
    Product Compatibility
    Lexium 32M
    Pep Code
    ENVPEP1407005EN
    Pcr Version
    PCR-ed3-EN-2015 04 02
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Circularity ProfileENVEOLI1407005EN
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Without Single Use PlasticNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold
    Pep Verification Date2020-10-01
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    communication module
    Range Of ProductAltivar

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
