Tripp Lite SMART500RT1UN UPS Battery Backup, Line-Interactive, 500VA/300W, 120V, 6 Outlets, Network Card, 1U Rack/Tower
- MPN: SMART500RT1UN
- UPC: 037332224170
- PPN: TRP-SMART500RT1UN
CAD
$1240.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartPro 120V 500VA 300W Line-Interactive UPS, 1U, WEBCARDLX, USB, DB9, 6 Outlets

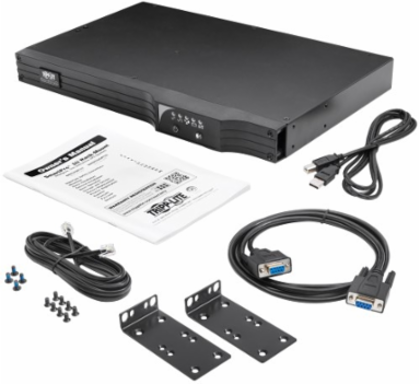

Features
- SMART500RT1UN 120V 500VA 300W Line-Interactive UPS with 6 Outlets
- WEBCARDLX network management card
- Micro USB to USB-A
- USB cable
- DB9 cable
- EPO cable

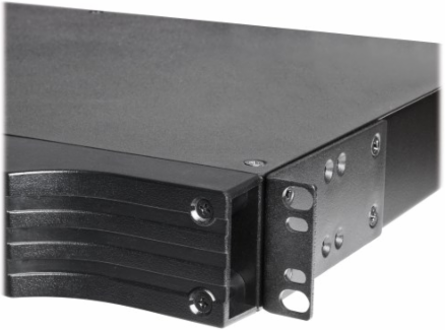

- Rack-mounting hardware
Documentation & Downloads
Specifications
Performance
| UPS Type | Line-Interactive |
|---|---|
| Input Phase | Single-Phase |
| Recommended Electrical Service | 15A 120V |
| Output Voltage Regulation | -14%, +16% |
| Output AC Waveform | Sine wave |
| Battery Recharge Rate | Less than 12 hours to 90% |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-95% non-condensing |
| Output Capacity | 500 VA/W |
|---|---|
| Input Circuit Breakers | 10A |
| Frequency Compatibility | 60 Hz |
| UPS Output Receptacles | 5 UPS outlets, 1 surge-only outlet |
| Output Receptacles | (6) 5-15R |
| AC Mode Efficiency Rating | 97% |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| Audible Noise | 45 dBA maximum, front side 1m |
Reference
| Product Warranty Period | 2-year warranty, 3 year with registration (registration required for 3-year warranty) |
|---|
| UPS Applications | High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
|---|
Dimensions

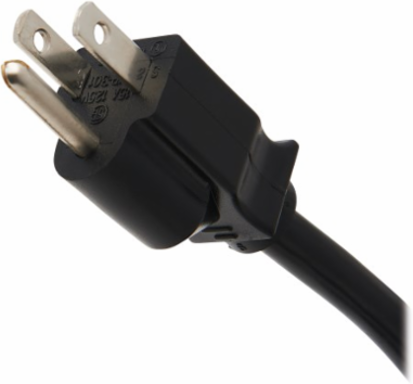

| UPS Input Connection Type | 5-15P |
|---|---|
| DC System Voltage | 12V |
| Minimum Required Rack Depth | 15 in |
| Primary UPS Height | 44 mm |
| UPS Power Module Dimensions | 1.73 x 17.32 x 11.26 in |
| Communications Interface | DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled) |
| UPS Input Cord Length | 10 ft |
|---|---|
| Primary Form Factor | Rackmount; Tower |
| Primary UPS Depth | 286 mm |
| Primary UPS Width | 440 mm |
| Unit Dimensions | 1.000 x 17.320 x 11.260 in |
| Network Management Cards | WEBCARDLXE |
Material
| UPS Housing Material | Steel |
|---|
| Battery Type | Valve Regulated Lead Acid (VRLA) |
|---|
