Tripp Lite SMART500RT1U 500VA 300W Line-Interactive UPS, 1U Rack/Tower, 6 Outlets, USB/DB9
- MPN: SMART500RT1U
- UPC: 037332119247
- PPN: TRP-SMART500RT1U
CAD
$623.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
500VA 300W Line-Interactive UPS, 1U Rack/Tower, 6 Outlets, USB/DB9
Features
- 500VA line-interactive 1U rack/tower UPS
- 120V nominal output during brownouts as low as 90V
- USB, RS232, EPO and slot for Network Management Card options
- Front panel status LEDs; 1 switched output load bank

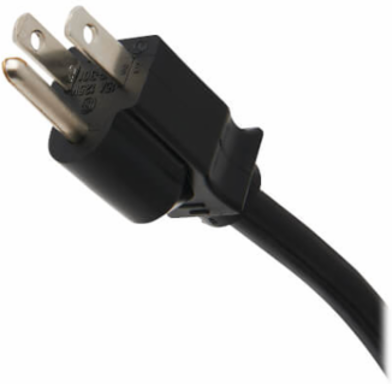

- NEMA 5-15P input; 7 NEMA 5-15R outlets
- To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
Documentation & Downloads
Specifications
Additional
- Input Voltage
- 120V AC nominal
- Output Wattage
- 300W
- Output Voltage Regulation (Line Mode)
- -15%, +13%
- Output Voltage Nominal
- 110V, 115V, 120V
- Transfer Time
- 4-7 milliseconds
- Dimensions (H x W x D)
- 1.73 x 17.32 x 11.26 in
- Input Connection
- NEMA 5-15P
- Material
- Steel housing
- Storage Temperature Range
- -15 to 50 C (5 to 122 F)
- Compliance
- UL Listed, CSA, NOM
Amperage12A maximum input
Output Volt Amp Capacity500 VA
Output Voltage Regulation (Battery Mode)+/- 5%
Frequency60 Hz
Primary Form FactorRackmount (1U height)
Weight17.6 lbs
Output Receptacles6 UPS-supported, 1 surge-only (5-15R)
Operating Temperature Range0 to 40 C (32 to 104 F)
Relative Humidity0 to 95%, non-condensing
