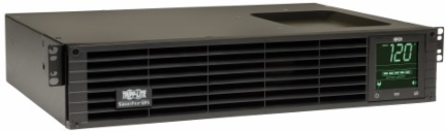

Tripp Lite SMART1000RM2UN SmartPro Line-Interactive Sine Wave UPS, 120V, 1000VA/800W, 2U, WEBCARDLX, LCD, USB, DB9, 6 Outlets
- MPN: SMART1000RM2UN
- UPC: 037332189431
- PPN: TRP-SMART1000RM2UN
CAD
$2294.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartPro 120V 1000VA 800W Line-Interactive Sine Wave UPS, 2U, WEBCARDLX, LCD, USB, DB9, 6 Outlets
Features

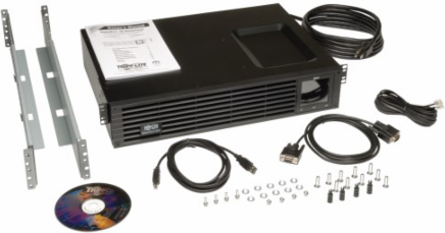

- WEBCARDLX network management card
- Micro USB to USB-A cable
- USB cable
- DB9 cable
- EPO cable
- Rack-mounting hardware
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
| UPS Input Connection Type | 5-15P |
|---|---|
| Output Receptacles | (6) 5-15R |
| Cooling Method | Fan |
| Primary UPS Depth | 318 mm |
| Primary UPS Width | 441 mm |
| Unit Weight | 35.4 lb |

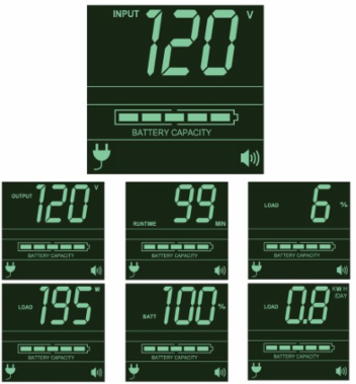

| Front Panel LCD Display | Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and additional options |
| Alarm Cancel Operation | Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available |
| Network Management Cards | WEBCARDLXE |
| Communications Cable | USB and DB9 cabling included |

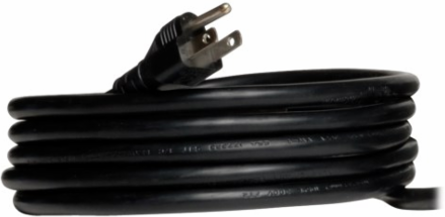

| UPS Input Cord Length | 10 ft |
|---|---|
| Primary Form Factor | Rackmount |
| Minimum Required Rack Depth | 16 mm |
| Primary UPS Height | 88 mm |
| Unit Dimensions | 3.450 x 17.350 x 15.500 in |
| Mounting Details | Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm) |
| Switches | 3 pushbutton switches control OFF/ON power status, MODE selection and MUTE/ENTER control functions |
| Audible Alarm | Indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| Communications Interface | DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled) |
| Grounding Details | Back panel grounding lug |
Performance
| UPS Type | Line-Interactive |
|---|---|
| Input Phase | Single-Phase |
| Maximum Input Amps | 9A |
| Recommended Electrical Service | 15A 120V |
| Output Voltage Regulation | -21%, +8% |
| Output AC Waveform | Sine wave |
| AC Mode Efficiency Rating | 95% |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Battery Recharge Rate | Less than 4 hours from 10% to 90% |
| Battery Replacement Description | Hot-swappable, user replaceable batteries |
| Storage Temperature Range | 5° to 122°F (-15° to 50°C) |
| Output Capacity | 1000VA / 800W |
|---|---|
| Rated Input Current | 9.2A |
| Input Circuit Breakers | 15A |
| Frequency Compatibility | 60 Hz |
| Nominal Voltage Details | 120V nominal output in battery mode |
| Voltage Regulation Description | Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147 |
| Audible Noise | 45 dBA maximum, front side 1m |
| DC System Voltage | 24V |
| Battery Access | Front panel battery access door |
| Operating Temperature Range | 32° to 104°F (0° to 40°C) |
| Relative Humidity | 0-95% non-condensing |
Reference
| UPS Applications | Large Network; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality |
|---|
| Product Warranty Period | 2-year warranty, 3 year with registration. Registration required for 3-year warranty |
|---|
Material
| UPS Housing Material | Steel |
|---|
