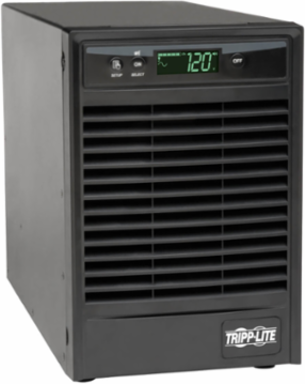

Tripp Lite SU1000XLCD SmartOnline 1kVA 900W Tower UPS with LCD, USB & Network Card Options
- MPN: SU1000XLCD
- UPC: 037332174666
- PPN: TRP-SU1000XLCD
CAD
$1884.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartOnline 1000VA 900W 120V Double-Conversion UPS - 6 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, Tower

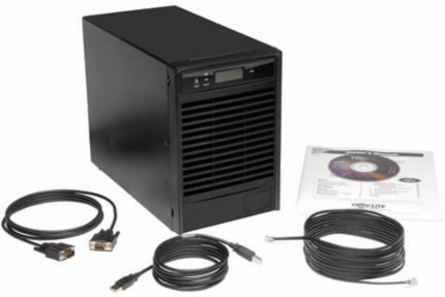

Features
- USB cable
- DB9 cable
- Quick Start Guide
Documentation & Downloads
Specifications
Dimensions
- UPS Input Connection Type
- 5-15P

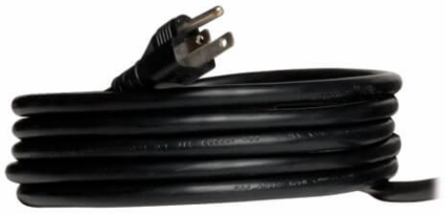

- UPS Input Cord Length
- 8 ft
- Primary Form Factor
- Tower
- Unit Weight
- 32.63 lb
- Network Management Cards
- (1) WEBCARDLXE
Input Plug TypeNEMA 5-15P

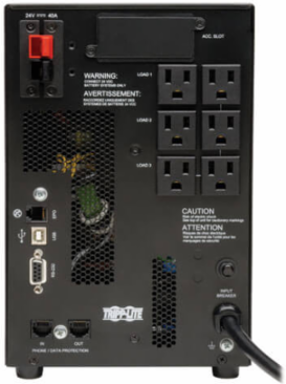

Output Receptacles(6) 5-15R
Unit Dimensions9.930 x 6.300 x 15.240 in
Communications Interface(1) Contact closure; (1) RS-232; (1) Slot for SNMP/Web interface; (1) USB
Material
- UPS Housing Material
- Metal
- Battery Type
- Valve Regulated Lead Acid (VRLA)
- Expandable Runtime Description
- Add up to 4 extended battery modules (EBM), part number BP36V. Compatible only with the 2023 UPS design update; see Legacy Product Datasheet for previous design battery pack functionality
- Battery Replacement Description
- User replaceable batteries

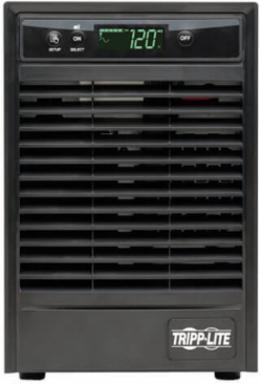

- Front Panel LCD Display

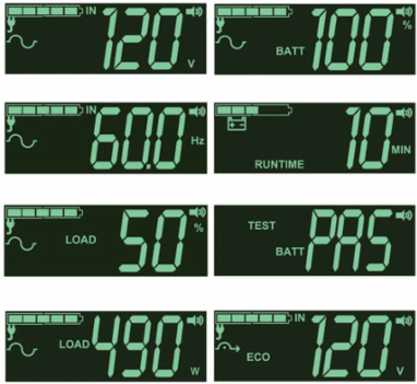

- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- LED Indicators
- 4 status-indicating LEDs
- Green Energy-Saving Features
- High efficiency economy mode operation; Individually controllable load banks
Cooling MethodFan
Expandable RuntimeYes
Battery AccessBattery access door
Voltage Regulation DescriptionOnline, double-conversion power conditioning
SwitchesRPO / ROO
Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Communications CableUSB and RS232 cabling included
UPS ApplicationsMission Critical Applications
Performance
- UPS Type
- On-Line
- Input Phase
- Single-Phase
- Maximum Input Amps
- 9A
- Nominal Voltage Details
- 120V default
- Frequency Compatibility Details
- Online Mode: Sync with line ±5% of nominal line frequency (outside this range: ±0.5% of auto-selected nominal frequency). Battery Mode: ±0.5% of auto-selected nominal frequency
- Output AC Waveform
- Pure Sine wave
- Battery Recharge Rate
- 3 hours recharge to 90%
- Operating Temperature Range
- 32° to 104°F (0° to 40°C)
- Relative Humidity
- 0-96% non-condensing
- Audible Noise
- 51 dB at 1m
Output Capacity1000 VA / 900 W
Rated Input Current9A
Recommended Electrical Service120V
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation+/- 2%
DC System Voltage36V
AC Mode Efficiency Rating87%
Storage Temperature RangeWith battery: 32° to 104°F (0° to 40°C); without battery: -13° to 131°F (-25° to 55°C)
Operating Elevation0-10000 ft. (0-3000 m)
Reference
- Product Warranty Period
- 2-year limited warranty
Extended Service Plans5-year depot exchange plan: TL9SW5Y-1500UC (parts, electronics and battery coverage, next business day shipping, technical support); 5-year onsite plan: TLWFLN75XX-2509UC (onsite parts and labor for 5 years, 24x7 response, next-day shipping, technical support)
