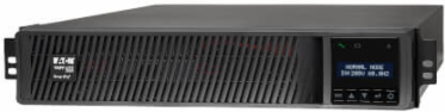

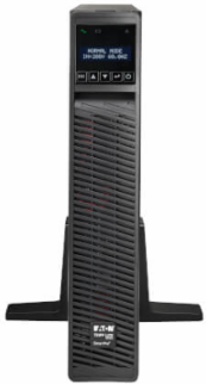

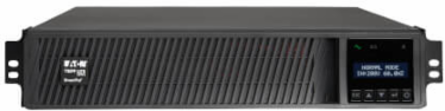

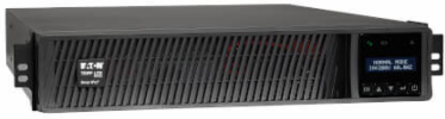

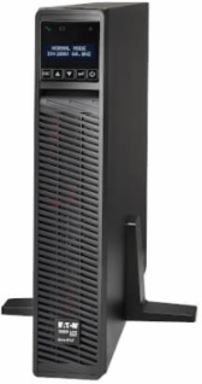

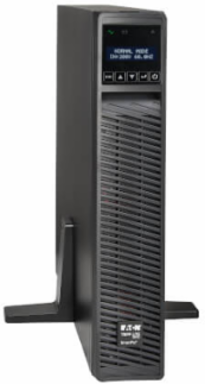

Tripp Lite SMX1500XLRT2UN SmartPro 1500VA 1500W 208V Line-Interactive Sine Wave UPS - 8 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower

MPN: SMX1500XLRT2UN
UPC: 037332256423
PPN: TRP-SMX1500XLRT2UN

$3294.48

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

SmartPro 1500VA 1500W 208V Line-Interactive Sine Wave UPS - 8 Outlets, Extended Run, Network Card Included, LCD, USB, DB9, 2U Rack/Tower

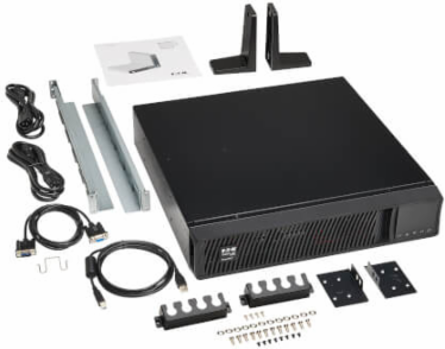

Features

WEBCARDLXE network management card
USB cable
DB9 cable
Rack-mounting hardware
Tower support stands
Safety instructions
Advanced User Guide

Documentation & Downloads

Specifications

Performance

UPS Type	Line-Interactive
Rated Input Current	10A
Output Capacity	1500 VA
Frequency Compatibility	50 / 60 Hz (automatic frequency selection)
Output AC Waveform	Sine wave
Expandable Battery Runtime	Extended runtime supported via optional external battery packs
AC Mode Efficiency Rating	98%
Operating Temperature Range	32 to 104°F (0 to 40°C)
Relative Humidity	20 to 95%, non-condensing
Storage Elevation	0-32,808 ft

Input Phase	Single-Phase
Maximum Input Amps	10
Nominal Voltage Details	208V nominal output in battery mode
Output Voltage Regulation	208V (-13%, +15%)
Expandable Runtime	Yes
Voltage Regulation Description	Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 150 to 294V
Green Energy-Saving Features	Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
Storage Temperature Range	5 to 122°F (-15 to 50°C)
Operating Elevation	0-10000 ft (0-3000 m)
Audible Noise	45 dBA maximum, front side 1m

Dimensions

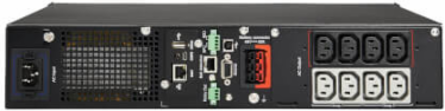

UPS Input Connection Type	C14 inlet
Included Output Power Cables	Set of 2 C13 to C14 power cables included
Output Receptacles	(8) C13
Battery Recharge Rate	Less than 4.5 hours from 10% to 90%
Battery Replacement Description	Hot-swappable, user replaceable batteries
Switches	5 pushbutton switches control OFF/ON power status, ENTER, UP, and DOWN selection and ESC control functions. LX Platform Interface: recessed reset switch for interface reboot and factory reset
Primary Form Factor	Rackmount; Tower
Minimum Required Rack Depth	21 in
Primary UPS Height	86 mm
UPS Power Module Dimensions	3.4 x 17.2 x 17.6 in
Unit Dimensions	3.400 x 17.200 x 17.600 in
Mounting Details	Included mounting bracket enables installation in 4 post racks. Two ABS mounting stands enable the UPS to be configured in an upright tower orientation
Communications Cable	Micro-USB, USB and DB9 cabling included
Network Compatibility	10 Mbps; 100 Mbps (Fast Ethernet)
Grounding Details	Rear panel grounding lug

Output Receptacle Details	Compatible with Eaton Tripp Lite Power Cords
Hot-Swap PDU Options	PDUBHV10 (2U / 8 C13 outlets)
DC System Voltage	48
Battery Access	Front panel battery access door
Front Panel LCD Display	Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options
Audible Alarm	Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Cooling Method	Fan
Primary UPS Depth	447 mm
Primary UPS Width	437 mm
UPS Power Module Weight	20.18 lb
Unit Weight	49.4 lb
Network Management Cards	WEBCARDLXE
SNMP Compatibility	SNMP V1, V2c, V3
Communications Interface	Contact closure; DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB
