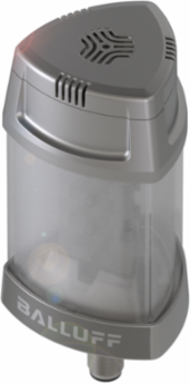

SmartLight LED Stack Light, 60 x 60 x 138.5 mm, IO-Link 1.1, 95 dB/m
Balluff

Balluff BNI IOL-800-000-Z037 SmartLight LED Stack Light, 60 x 60 x 138.5 mm, IO-Link 1.1, 95 dB/m

  • MPN: BNI IOL-800-000-Z037
  • PPN: BAL-BNI0087

CAD

$364.92

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Experience enhanced visibility and communication in your industrial environment with the SmartLight LED stack light from Balluff. This innovative device features an IO-Link 1.1 interface, allowing for seamless integration and configuration, while its compact dimensions of 60 x 60 x 138.5 mm make it suitable for various applications. With a robust sound module capable of reaching a maximum volume of 95 dB/m, this stack light not only provides visual cues through its predefined colors—ranging from yellow to red—but also auditory signals to ensure that important alerts are noticed. Designed to withstand ambient temperatures from -5 to 50 °C and equipped with an IP30 rating, it is built for durability and reliability in demanding environments.

Documentation & Downloads

Specifications

Additional

Operating Voltage
18...30.2 VDC
Sound Frequency
2800 ± 500 Hz
Connection
M12x1-Male, 4-pin, A-coded, nickel plated 2 µm, gold plated 0.4 µm
Weight
390 g
Housing Material
PC, Transparent, Cu 15 µm, Ni 15 µm; Die-cast zinc
Compliance
CE, UKCA, cULus, WEEE
Storage Temperature
-25...50 °C
Predefined Colors
Yellow, White, Green, Blue, Red, Orange, Configurable
Principle of Operation
Indicator light with sound module
Setting
Function indicator; Volume
Process Data OUT
1 byte
Volume95 dB/m
Cycle Time Min5 ms
Dimensions60 x 60 x 138.5 mm
Fastening DetailScrews M18
IP RatingIP30
Ambient Temperature-5...50 °C
Colors Number7
Segments Number Max1
Function IndicatorChaser, Stack light, Flexi-Mode
Data Transfer RateCOM2 (38.4 kBaud)
Country of OriginHungary
