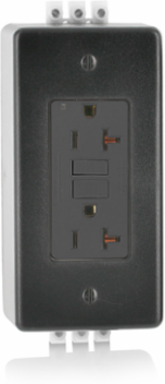

Leviton GFNT2-DIN SmartlockPro GFCI Receptacle 20 Amp 125 Volt Hospital Grade DIN Rail Mount
- MPN: GFNT2-DIN
- UPC: 078477725764
- PPN: LEV-GFNT2-DIN
CAD
$196.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
SmartlockPro GFCI Duplex Receptacle Outlet, Extra Heavy-Duty Industrial Grade, Power Indication, DIN Rail Mount, 20 Amp, 125 Volt, Terminal Blocks, NEMA 5-20R, 2-Pole, 3-Wire, Grounding - Black
Features
- SAFE - Delivers continuous ground fault protection
- SELF TESTING - Automatically self-tests to ensure it can respond to ground fault
- SIMPLE - Status indicator light provides simple, intuitive feedback
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-1 & WD-6
Applicable StandardsUL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Material Specifications
- Enclosure Cover Material
- Polycarbonate
- Face Material
- PBT
Enclosure MaterialPolycarbonate
Line ContactsBrass
Mechanical Specifications
- Product ID
- Ratings are permanently marked on device
- Torque Range
- 14 – 18 in.-lbs
Screw Terminal Torque14-18 in-lbs
Trip LevelClass A, 5mA plus or minus 1mA
Environmental Specifications
- Operating Temperature
- -35C to +66C
Electrical Specifications
- Grounding
- Self-Grounding
- Short Circuit Current Rating
- 10kA
Pole2
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 1 HP
