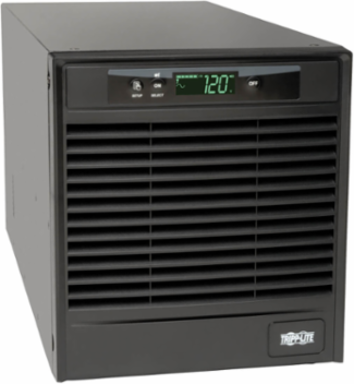

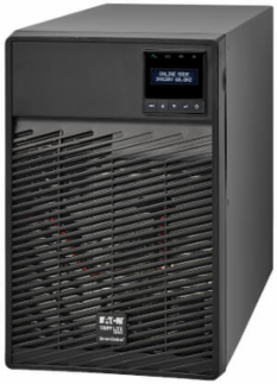

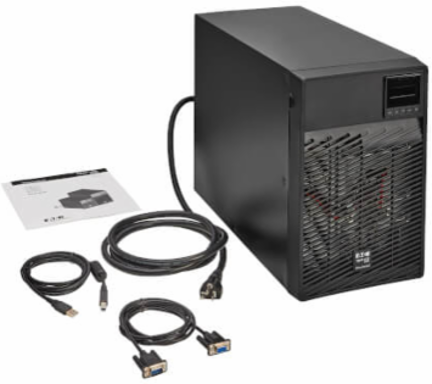

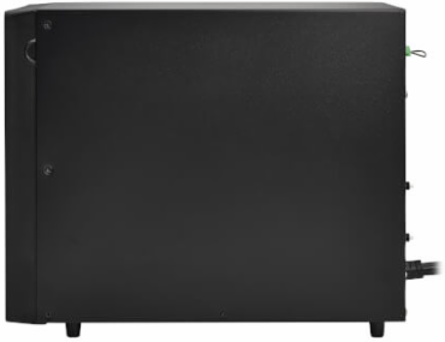

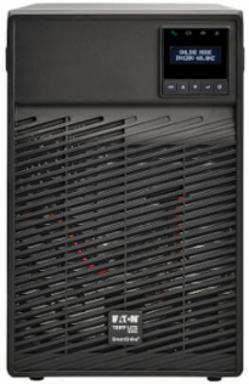

Tripp Lite SU2200XLCD SmartOnline Tower UPS 2200VA/1800W, LCD, Extendable Runtime, 10 ft Input Cord
Tripp Lite SU2200XLCD SmartOnline Tower UPS 2200VA/1800W, LCD, Extendable Runtime, 10 ft Input Cord
- MPN: SU2200XLCD
- UPC: 037332174659
- PPN: TRP-SU2200XLCD
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$3370.10/ EA
Features
- 2200VA / 2.2kVA / 1800 watt on-line double-conversion tower UPS
- 100/110/120/127V 50/60Hz output, 97% efficiency economy mode option

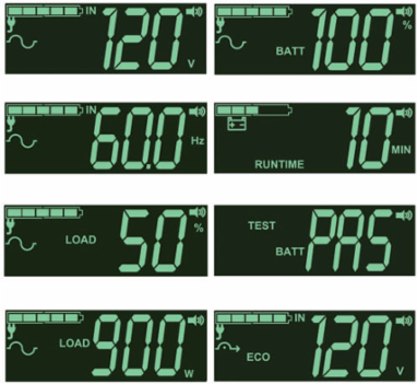

- Interactive LCD with 10 selectable screens of UPS and site power data
- Expandable runtime, Hot-swappable batteries
- USB, RS232 & EPO ports, slot for network management card options
- 2 independently switched load banks

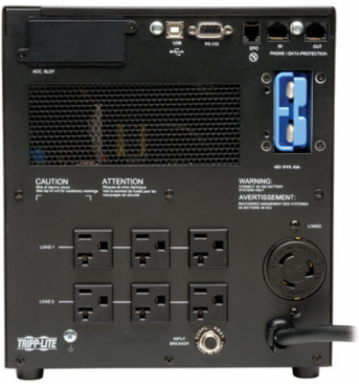

- NEMA 5-20P input; 6 5-15/20R & 1 L5-20R outlets
- To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Ideal for Protection of Mission-Critical Equipment
- True On-Line Operation with Pure Sine Wave Output and Zero Transfer Time
- Individually Controllable Outlets
- Reliable, Expandable Battery Backup
- High Power Factor and Highly Efficient Operation Reduces BTU Output
- AC Line and Tel/Ethernet Surge Suppression
- EMI/RFI Line Noise Filtering
- LCD Screen and Audible Alarm
- Emergency Power Off (EPO) Capability
- USB/DB9 Ports, Management Card Options and Included PowerAlert Software
- Peace of Mind
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 570
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 4.5 min. (1800w)
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- Expandable Runtime Description
- External battery configurations require the use of Tripp Lite's External Battery Configuration Software, see manual for details
- Battery Recharge Rate (Included Batteries)
- Less than 3 hours from 10% to 90%
- Battery Access
- Battery access door
- Expandable Runtime
- Yes
Half Load Runtime (min.)13 min. (900w)
External Battery Pack CompatibilityBP48V27-2US (multi-pack compatible); BP48V60RT-3U (multi-pack compatible)
DC System Voltage (VDC)48
Internal UPS Replacement Battery CartridgeRBC48-SUTWR
Battery Replacement DescriptionHot-swappable, user replaceable batteries
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Physical
- Cooling Method
- Fan
- Primary UPS Depth (mm)
- 495
- Primary UPS Width (mm)
- 229
- Shipping Weight (lbs.)
- 60.00
- UPS Power Module Dimensions (hwd, in.)
- 10.2 x 9 x 19.5
- UPS Power Module Weight (lbs.)
- 52.9
Primary Form FactorTower
Primary UPS Height (mm)259
Shipping Dimensions (hwd / in.)14.70 x 13.50 x 23.10
UPS Housing MaterialSteel
UPS Power Module Weight (kg)24.00
User Interface, Alerts & Controls

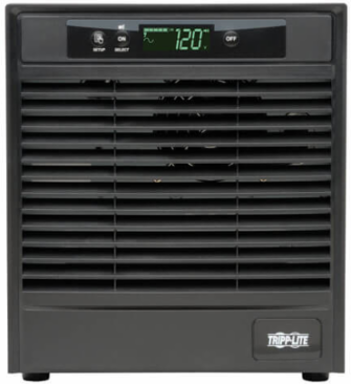

- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, frequency, operating mode, alarm function and a variety of additional options
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Switches2 switches control off/on power status and alarm-cancel/self-test operation
Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Voltage Regulation
- Voltage Regulation Description
- Online, double-conversion power conditioning
- Undervoltage Correction
- 2% output voltage regulation during undervoltages to 55V (33% load), 70V (70% load), 100V (100% load)
Overvoltage Correction2% output voltage regulation during overvoltages to 150
Input
- Rated input current (Maximum Load)
- 16A
- Nominal Input Voltage Description
- 120V factory default
- Input Circuit Breakers
- 30A
- Recommended Electrical Service
- 20A 120V
Nominal Input Voltage(s) Supported100V AC; 110V AC; 120V AC; 127V AC

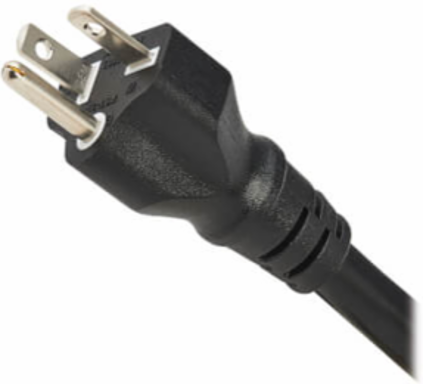

UPS Input Connection Type5-20P
UPS Input Cord Length (ft.)10
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 2200
- Output Watt Capacity (Watts)
- 1800
- Power Factor
- 0.82
- Nominal Voltage Details
- 120V default
- Frequency Compatibility Details
- ON LINE MODE: Output frequency is automatically configured to match nominal input frequency on startup; Output matches input frequency when +/-5Hz of nominal; Output is regulated to +/-0.05Hz when input frequency exceeds +/-5Hz of nominal. UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. FREQUENCY REGULATION / CONVERSION MODE: Output is regulated to +/-0.05Hz of selected output frequency when input is 40 to 70Hz; UPS switches to battery mode when input frequency is below 40Hz or above 70Hz. BATTERY MODE: Output is regulated to +/-0.05Hz of selected nominal.
- Output Voltage Regulation (Economy Line Mode)
- +/- 10%
- Load Management Receptacles
- Two switchable three-outlet load banks
- Output AC Waveform (Battery Mode)
- Pure Sine wave
- Nominal Output Voltage(s) Supported
- 100V; 110V; 115V; 120V; 127V
- Individually Controllable Load Banks
- Yes
Output kVA Capacity (kVA)2.2
Output kW Capacity (kW)1.8
Crest Factor3:1
Frequency Compatibility50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Output Voltage Regulation (Line Mode)+/- 2%
Output Voltage Regulation (Battery Mode)+/- 3%
Output AC Waveform (AC Mode)Pure Sine wave
Output Capacity DetailsON LINE MODE: Maximum output capacity rating is reduced to 1620W (115V), 1530W (110V) and 1440W (100V); FREQUENCY REGULATION / CONVERSION MODE: Maximum output ratings are reduced in frequency regulation / conversion mode (127/120V 1260 watts, 115V 1134 watts, 110V 1071 watts, 100V 1008 watts) OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% load for 3 minutes; 150% load for 30 seconds and >150% load for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits)

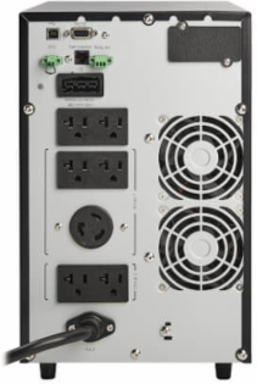

Output Receptacles(6) 5-15/20R; (1) L5-20R
Communications
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; MODBUSCARD ; RELAYIOCARD
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions; DB9 port supports RS232 and contact closure communications

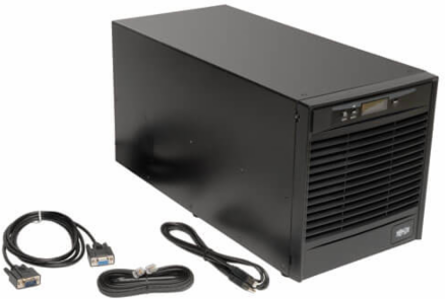

Communications CableUSB and DB9 cabling included
Communications InterfaceUSB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- AC Economy Mode BTU / Hr. (Full Load)
- 190
- AC Mode Efficiency Rating (100% Load)
- 92%
- Audible Noise
- < 50.5 dB at front side 1m
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)684
Battery Mode BTU / Hr. (Full Load)1087
AC Economy Mode Efficiency Rating (100% Load)97%
Operating Elevation (m)Up to 3000m
Overview
- UPC Code
- 037332174659
UPS TypeOn-Line
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
- Green Energy-Saving Features
- High efficiency economy mode operation; Individually controllable load banks; Schedulable daily hours of economy mode operation
High Availability UPS FeaturesAutomatic inverter bypass; Hot swappable batteries
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- Zero transfer time (0 ms.) in online, double-conversion and frequency regulation / conversion modes;
- High Voltage Transfer to Battery Power (Setpoint)
- 150
Low Voltage Transfer to Battery Power (Setpoint)55V (33% load), 70V (70% load), 100V (100% load)
