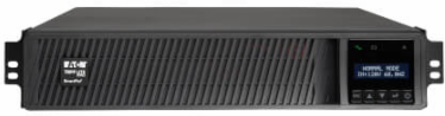

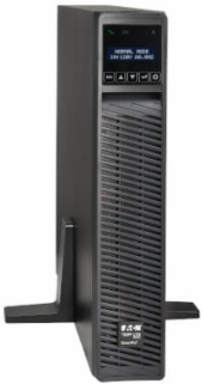

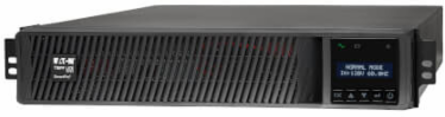

Tripp Lite SMART2200RMXLN SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Extended Run, Pre-Installed WEBCARDLX Network Interface, LCD Display, USB, DB9 Serial

SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Extended Run, Pre-Installed WEBCARDLX Network Interface, LCD Display, USB, DB9 Serial - https://media.province-electric.com/tripplite/2020q1/70487989745c3ceae8caa99c6d538143aab402c7-medium.png

Tripp Lite SMART2200RMXLN SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Extended Run, Pre-Installed WEBCARDLX Network Interface, LCD Display, USB, DB9 Serial

MPN: SMART2200RMXLN
UPC: 037332177926
PPN: TRP-SMART2200RMXLN

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4058.07/ EA

Qty:

Loading add to cart quantity...

Description

SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U Rack/Tower, Extended Run, Pre-Installed WEBCARDLX Network Interface, LCD Display, USB, DB9 Serial

Features

2.2kVA / 2200VA / 1920W line interactive 2U rack / tower UPS; 0.9 power factor
120V nominal output during brownouts to 83V and overvoltages to 145V
Interactive LCD provides UPS status information and advanced configuration options
USB, RS232, EPO and pre-installed WEBCARDLX Network Interface
Expandable runtime, Hot-swap batteries, 96% efficiency, Sine wave output
NEMA 5-20P input; 4 NEMA 5-15/20R & 4 5-15R outlets
To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
$250,000 Ultimate Lifetime Insurance

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 570

EMI / RFI AC Noise Suppression: Yes

UPS AC Suppression Response TimeInstantaneous

Battery

Full Load Runtime (min.): 4.5 min. (1920w)

Expandable Battery Runtime: Extended runtime supported via optional external battery packs

DC System Voltage (VDC): 48

Internal UPS Replacement Battery Cartridge: RBC94-2U

Battery Replacement Description: Hot-swappable, user replaceable batteries

Half Load Runtime (min.)12 min. (960w)

External Battery Pack CompatibilityBP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)

Battery Recharge Rate (Included Batteries)4.5 hours maximum from 10% to 90% (typical, full load discharge)

Battery AccessFront panel battery access door

Expandable RuntimeYes

Certifications

UPS Certifications: Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

UPS Certification DetailsSAFETY STANDARD (U.S.) - UL1778:2014 (5th Ed) R10.17; SAFETY STANDARD (CANADA) - CAN/CSA-C22.2 No. 107.3-14 (3rd Ed) + GI1 / FCC/ICES COMPLIANT - CLASS A

Physical

Cooling Method: Fan

Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount

Minimum Required Rack Depth with External Battery Pack (cm): 67

Minimum Required Rack Depth without External Battery Pack (cm): 62

Optional Mounting Accessory Notes: Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support

Primary UPS Depth (mm): 494

Primary UPS Width (mm): 440

Shipping Dimensions (hwd / in.): 8.90 x 23.90 x 22.00

UPS Housing Material: Steel

UPS Power Module Weight (kg): 26.13

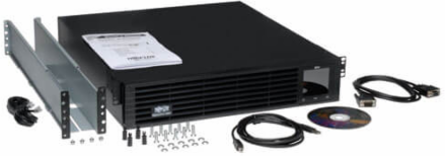

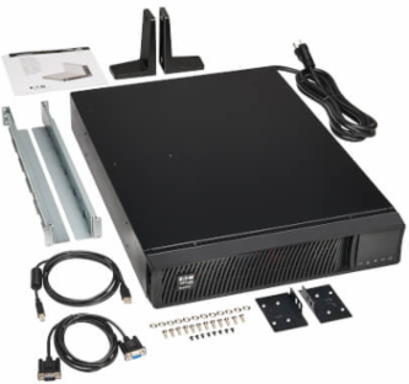

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

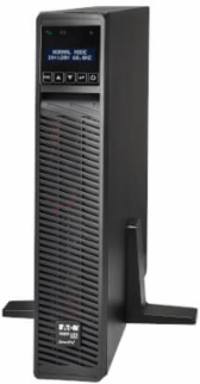

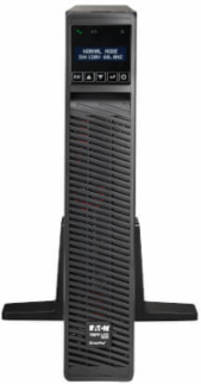

Installation Form Factors Supported with Optional Accessories2 post rackmount (2POSTRMKITWM); 4 post rackmount short-depth (4POSTRAILKITWM); Tower (2-9USTAND); Wallmount (2POSTRMKITWM)

Minimum Required Rack Depth with External Battery Pack (in.)26.46

Minimum Required Rack Depth without External Battery Pack (in.)24.46

Primary Form FactorRackmount

Primary UPS Height (mm)87

Rack Height2U

Shipping Weight (lbs.)75.00

UPS Power Module Dimensions (hwd, in.)3.43 x 17.32 x 19.46

UPS Power Module Weight (lbs.)57.6

User Interface, Alerts & Controls

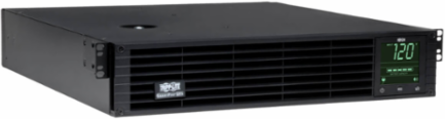

Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

LED Indicators: Network Link/Activity (Green): Flashes for network activity. Network Speed (Yellow): 10 Mbps (Flashing), 100 Mbps (On steady). LX Platform Interface Status: Normal Operation (Solid Green); Software Update (Alternating Green/Orange ~1/sec); Factory Reset (Alternating Green/Orange ~2/sec).

Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions. LX Platform Interface: Recessed reset switch for interface reboot and factory reset

Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145

Undervoltage Correction: Voltage boost of 12% applies when input voltage is between 96 and 108

Overvoltage CorrectionVoltage reduction of 12% applies when input is between 127 and 145

Severe Undervoltage CorrectionVoltage boost of 24% applies when input voltage is between 83 and 95

Input

Rated input current (Maximum Load): 16A

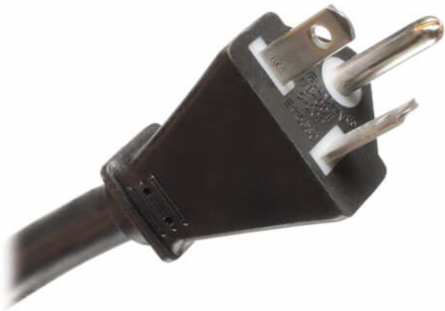

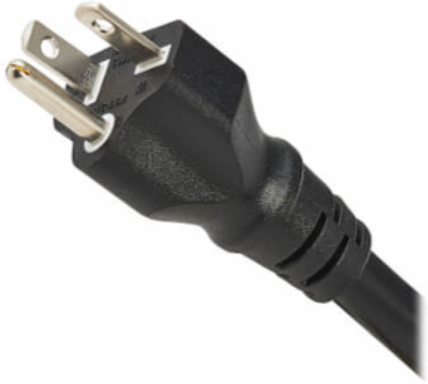

UPS Input Connection Type: 5-20P

Recommended Electrical Service: 20A 120V

Nominal Input Voltage(s) Supported120V AC

UPS Input Cord Length (ft.)10

Input PhaseSingle-Phase

Output

Output Volt Amp Capacity (VA): 2200

Output Watt Capacity (Watts): 1920

Power Factor: 0.87

Frequency Compatibility: 60 Hz

Output Voltage Regulation (Battery Mode): +/- 5%

Output AC Waveform (AC Mode): Pure Sine wave

Output Capacity Details: Output is reduced to 1600 watts maximum when used with external battery packs

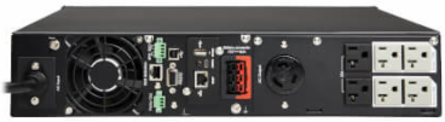

Output Receptacles: (4) 5-15R; (4) 5-15/20R

Output kVA Capacity (kVA)2.2

Output kW Capacity (kW)1.92

Nominal Voltage Details120v nominal output in battery mode

Output Voltage Regulation (Line Mode)-14%, +6%

Load Management ReceptaclesTwo switched single outlet load banks (1 5-15/20R & 1 5-15R)

Output AC Waveform (Battery Mode)Pure Sine wave

Nominal Output Voltage(s) Supported110V; 115V; 120V

Individually Controllable Load BanksYes

Communications

Network Monitoring Port Description: Includes Pre-installed WEBCARDLX Network Management interface card. RJ45 Network port, Micro-USB Configuration/Console port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.

Communications Cable: Micro-USB, USB, and DB9 cabling included

EPO Port: RJ11 interface jack with 4-meter cable included. Supports normally open and normally closed EPO systems

Network UPS Tools Compatibility: NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Communications Interface: (1) DB9 Serial; (1) EPO (emergency power off); (1) Micro-USB; (1) Pre-installed network card; (1) RJ45 Network; USB (HID enabled); (1) USB-A; (1) USB-B

PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert. . LX Platform Interface: PowerAlert Device Manager 15 (PADM15).

WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications

SNMP CompatibilitySNMP V1, V2c, V3

Network Speed10/100 Mbps

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: 5 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 1157

Audible Noise: 45 dBA maximum, front side 1m

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)306

AC Mode Efficiency Rating (100% Load)96%

Overview

UPC Code: 037332177926

UPS TypeLine-Interactive

Special Features

Grounding Lug: Back panel grounding lug

High Availability UPS Features: Hot swappable batteries

Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS; Individually controllable load banks

Warranty

Product Warranty Period (Worldwide): 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 5 milliseconds (line to battery mode); 1 millisecond (battery to line mode)

High Voltage Transfer to Battery Power (Setpoint): 145

Low Voltage Transfer to Battery Power (Setpoint)83
