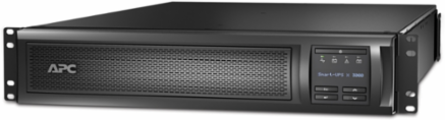

APC SMX3000RMLV2U Smart-UPS X 3kVA Line Interactive UPS, Rack/Tower Convertible 2U, 120V Output
- MPN: SMX3000RMLV2U
- UPC: 731304268550
- PPN: APC-SMX3000RMLV2U
CAD
$4410.45
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

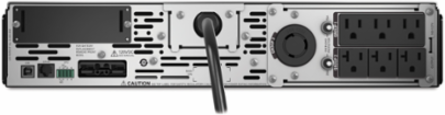

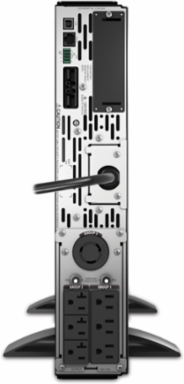

This APC Smart-UPS is designed for IT managers or network administrators to maintain business uptime, data transfer and continuity during prolonged power outages. The 2880VA line interactive 2U rack/tower UPS provides pure sine wave power to support critical electronics during power disruptions. The SMX comes with NEMA L5-30P input, 3x NEMA 5-15R, 3x NEMA 5-20R and 1x NEMA L5-30R outlets. The UPS has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. This uninterrupted power supply can connect to EcoStruxure IT or third-party centralized management platforms. The SMX UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. This is compatible with dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications. The Smart-UPS comes with a pair of tower-mounting stabilizing feet and rack-mounting brackets. The 3 switchable outlet groups allow more granular management of the power supplied to your devices. The Emergency Power Off feature enables the UPS to remotely shutdown during emergencies.
Features
- Enables centralized management via StruxureWare Data Center Expert.
- Reduces utility costs, generates less heat.
- Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
- Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
- Provides actual kilowatt hours of usage for energy conscious users.
- Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
- Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
- UPS recognizes when external battery packs are attached and automatically adjusts runtime.
- Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
- Simulates utility power to provide the highest degree of compatibility for active PFC power factor corrected servers and sensitive electronics.
- Customize network shutdown and reboot sequence of connected servers and UPSs.
- Allows additional run time to be quickly added as needed.
- Provides temporary battery power when the utility power is out.
- Protects the initial investment in the UPS when migrating from tower to rack-mount environment.
- Customize UPS capabilities with management cards.
- Prolongs battery life by regulating the charge voltage according to battery temperature.
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- 2880VA/2700W line interactive pure sine wave 2U rack/tower UPS (rail kit included)
- User-selectable low voltage setting of 100V-127V

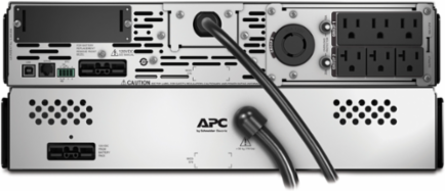

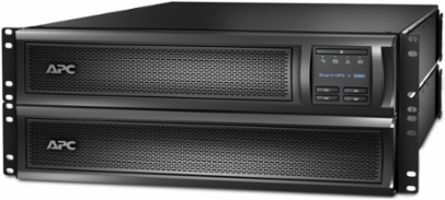

- Add up to 10 external battery packs (SMX120RMBP2U)
- Graceful shutdown using serial or USB cables via PowerChute Serial Shutdown
- Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels
- Ideal for servers, storage, networking & commercial applications
Documentation & Downloads
Specifications
Additional
| Output Power Capacity | 2880 VA |
|---|---|
| Input Voltage | 100-127 V |
| Input Connection Type | NEMA L5-30P |
| Waveform Type | Sine wave |
| Transfer Time | 2-4 ms |
| Battery Type | Lead-Acid battery |
| Surge Energy Rating | 540 J |

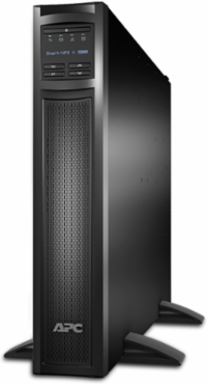

| Size | 2U Rack/Tower convertible |
| Width | 17.01 in (432 mm) |
| Weight | 84.77 lb (38.45 kg) |
| Color | Black |
| Certifications | BSMI, CSA, NOM, TUV, VCCI Class A |
| REACH | Contains Substances of Very High Concern |
| Rated Power | 2700 W |
|---|---|
| Output Voltage | 120 V |
| Output Connection Type | 3 NEMA 5-15R, 3 NEMA 5-20R, 1 NEMA L5-30R |
| Topology | Line Interactive |
| Input Frequency | 50/60 Hz 3 Hz auto-sensing |
| Typical Recharge Time | 3 h |
| Power Capacity | 3 kVA |
| Height | 3.35 in (85 mm) |
| Depth | 26.26 in (667 mm) |
| Cable Length | 8 ft (2.44 m) |
| Country of Origin | Philippines |
| RoHS | Compliant with Exemptions |
| Mercury Free | Yes |
