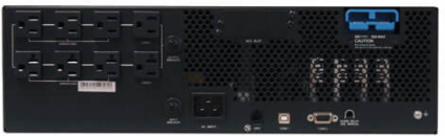

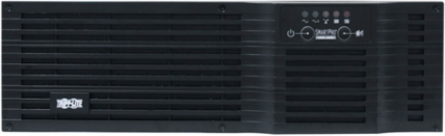

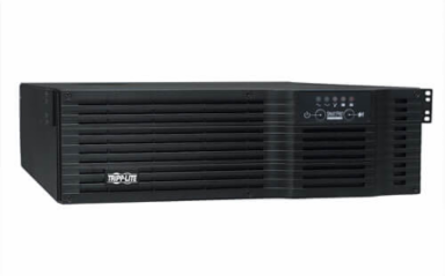

Tripp Lite SM2200RMDVTAA TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9

TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9 - https://media.province-electric.com/tripplite/2020q1/9764dded4e4554cde3c9e2ce6512d1b306ab6aa5-medium.png

TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9

MPN: SM2200RMDVTAA
UPC: 037332156310
PPN: TRP-SM2200RMDVTAA

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$4432.18/ EA

Qty:

Loading add to cart quantity...

Description

TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9

Features

Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
2200VA / 2.2kVA / 1920W line interactive 3U rack/tower UPS; 0.9 power factor
Maintains 120V output with 120V or 230V input, Sine wave output
USB port, RS232, EPO and optional network management card slot; Detailed status LEDs
95% line-mode efficiency, 2 switched load banks
C20 inlet & 4 international input line cords, 4 5-15R & 4 5-15/20R outlets
To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
2-year limited warranty

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 340

EMI / RFI AC Noise Suppression: Yes

UPS AC Suppression Response TimeInstantaneous

Battery

Full Load Runtime (min.): 12 minutes (1920 watts)

Expandable Battery Runtime: Extended runtime supported via optional external battery packs

DC System Voltage (VDC): 48

Internal UPS Replacement Battery Cartridge: RBC49-DV (quantity 2 required)

Battery Replacement Description: Hot-swappable, user replaceable batteries

Half Load Runtime (min.)30 minutes (960 watts)

External Battery Pack CompatibilityBP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)

Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90% (internal batteries)

Battery AccessFront panel battery access door

Expandable RuntimeYes

Certifications

UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); TAA Compliant

Physical

Cooling Method: Fan

Installation Form Factors Supported with Included Accessories: Tower

Minimum Required Rack Depth with External Battery Pack (cm): 82

Minimum Required Rack Depth without External Battery Pack (cm): 77

Primary Form Factor: Rackmount

Primary UPS Height (mm): 133

Rack Height: 3U

Shipping Weight (lbs.): 160.00

UPS Power Module Dimensions (hwd, in.): 5.25 x 17.5 x 25.25

UPS Power Module Weight (lbs.): 104.25

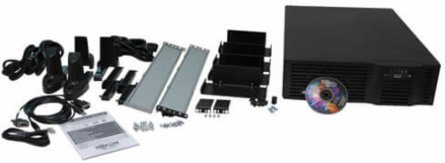

Included Mounting Accessory DescriptionComplete installation accessories available for 2 post, 4 post and tower installation

Installation Form Factors Supported with Optional Accessories4 post rackmount full-depth ( 4POSTRAILKIT )

Minimum Required Rack Depth with External Battery Pack (in.)32.25

Minimum Required Rack Depth without External Battery Pack (in.)30.25

Primary UPS Depth (mm)641

Primary UPS Width (mm)445

Shipping Dimensions (hwd / in.)12.00 x 30.00 x 30.00

UPS Housing MaterialSteel

UPS Power Module Weight (kg)47.29

User Interface, Alerts & Controls

Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation; rear panel protected switches support nominal voltage selection

Audible Alarm: Audible alarm indicates power-failure, overload and low-battery conditions

Alarm Cancel OperationPower-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status

LED Indicators5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains 120v line power output with input range of 89 to 148 or 170 to 286

Undervoltage Correction: Voltage boost of 12% applies when input voltage is between 96 and 108 (120V)

Overvoltage CorrectionVoltage reduction of 12% applies when input is between 127 and 148 (120V)

Input

Rated input current (Maximum Load): 16A (120V), 10A (230V)

UPS Input Connection Type: 5-20P; C20 inlet

Input Circuit Breakers: 20A

Input Phase: Single-Phase

Nominal Input Voltage(s) Supported120V AC; 230V AC

UPS Input Connection DescriptionC20 inlet and 5 compatible plugsets (5-20P, Schuko CEE7, EU1-16P, British BS1363, Italian CEI 23-16)

UPS Input Cord Length (ft.)6

Output

Output Volt Amp Capacity (VA): 2200

Output Watt Capacity (Watts): 1920

Power Factor: 0.87

Frequency Compatibility Details: Automatic frequency selection

Load Management Receptacles: Two switchable single-outlet 5-15R load banks

Output AC Waveform (Battery Mode): Pure Sine wave

Output Receptacles: (4) 5-15R; (4) 5-15/20R

Output kVA Capacity (kVA)2.2

Output kW Capacity (kW)1.92

Frequency Compatibility50 / 60 Hz

Output Voltage Regulation (Battery Mode)+/- 5%

Output AC Waveform (AC Mode)Sine wave

Nominal Output Voltage(s) Supported120V

Individually Controllable Load BanksYes

Communications

Network Management Cards: SNMPWEBCARD ; WEBCARDLX

PowerAlert Software: For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert

WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications

Communications Interface: USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions

Communications CableUSB and DB9 cabling included

Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.

Relative Humidity: 0 to 95%, non-condensing

Battery Mode BTU / Hr. (Full Load): 894

Audible Noise: 45 dBA maximum, front side 1m

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.

AC Mode BTU / Hr. (Full Load)347

AC Mode Efficiency Rating (100% Load)95%

Overview

UPC Code: 037332156310

UPS TypeLine-Interactive

Special Features

Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported

Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS; Individually controllable load banks

High Availability UPS FeaturesHot swappable batteries

Warranty

Product Warranty Period (Worldwide): 2-year limited warranty

Line / Battery Transfer

Transfer Time: 2-4 milliseconds

High Voltage Transfer to Battery Power (Setpoint): 148 (120V), 286 (230V)

Low Voltage Transfer to Battery Power (Setpoint)89 (120V), 170 (230V)
