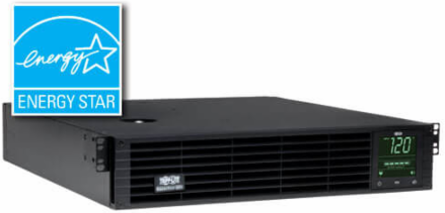

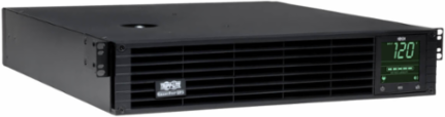

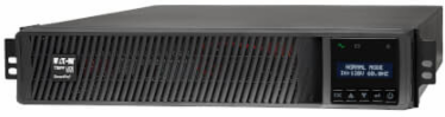

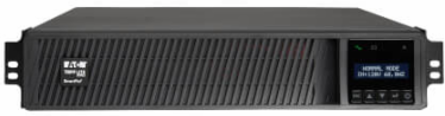

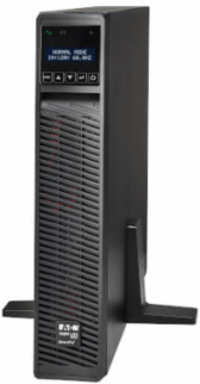

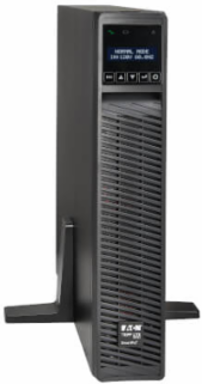

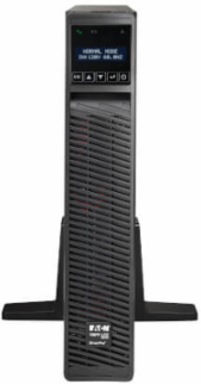

Tripp Lite SMART3000RM2UN 3000VA 2.25kW Line-Interactive UPS, 2U Rack/Tower, Pure Sine Wave, WEBCARDLX
- MPN: SMART3000RM2UN
- UPC: 037332177902
- PPN: TRP-SMART3000RM2UN
CAD
$4290.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
3000VA 2.25kW Line-Interactive UPS, 2U Rack/Tower, Pure Sine Wave, WEBCARDLX
Features
- 3kVA / 3000VA / 2250W line interactive 2U rack/tower UPS, Sine Wave
- Extended runtime options up to 1600W, Interactive LCD interface, 4 post mounting kit
- USB, RS232, EPO and pre-installed WEBCARDLX Network Interface
- 120V NEMA L5-30P input and 8 NEMA 5-15/20R & 1 L5-30R outlets
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 2-year warranty, 3 year with registration. Note: Registration is required for 3-year warranty.
- $250,000 Ultimate Lifetime Insurance
Documentation & Downloads
Specifications
Additional
- Output Volt Amp Capacity (VA)
- 3000 VA / 3 kVA
- Power Factor
- 0.75
- Frequency Compatibility
- 60 Hz
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Rated input current (Maximum Load)
- 24 A
- Recommended Electrical Service
- 30 A 120V
- Battery Runtime Full Load
- 3.5 min (2250 W)
- DC System Voltage (VDC)
- 48 V
- Voltage Regulation Description
- Automatic Voltage Regulation (AVR) maintains line power operation with input voltage 83 to 145 V
- Undervoltage Correction
- Input voltages between 96 and 108 V boosted by 12%
- Surge Suppression Joule Rating
- 570
- Storage Temperature Range
- 5 to 122 °F (-15 to 50 °C)
- BTU Output Full Load
- 189 BTU/hr AC Mode, 1356 BTU/hr Battery Mode
- Operating Elevation
- 0 to 10,000 ft (0 to 3000 m)
- Low Voltage Transfer Setpoint
- 83 V
- Cold Start Support
- Yes
- Load Management Receptacles
- Two switchable single-outlet load banks
- Input Cord Length
- 10 ft
- Battery Access
- Front panel battery access door
- Dimensions (H×W×D)
- 3.43 in × 17.32 in × 19.46 in (87 mm × 440 mm × 494 mm)

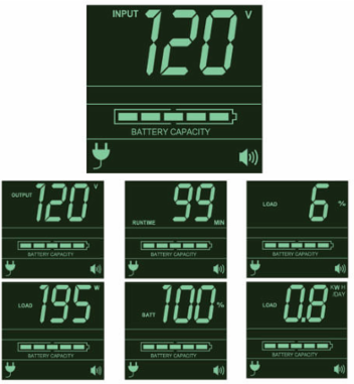

- Front Panel LCD Display
- Interactive LCD with detailed UPS and site power data
- Audible Alarm
- Audible alarm with alarm-cancel and silent mode
- Cooling Method
- Fan
- Optional Mounting Accessories
- 2-post rackmount, tower, wallmount kits available
- Network Interface Speed
- 10/100 Mbps auto-sensing
- SNMP Compatibility
- SNMP v1, v2c, v3
- Warranty
- 2 years standard, 3 years with registration
Output Watt Capacity (Watts)2250 W
Nominal Output Voltage(s) Supported110V, 115V, 120V
Output Voltage Regulation (Line Mode)-14% to +6%
Output AC Waveform (Battery Mode)Pure Sine wave
Nominal Input Voltage(s) Supported120 V AC
Input PhaseSingle-Phase
Battery Runtime Half Load10 min (1125 W)
Battery Recharge TimeLess than 4.5 hours (10% to 90%)
Overvoltage CorrectionInput voltages between 127 and 145 V reduced by 12%
Severe Undervoltage CorrectionInput voltages between 83 and 95 V boosted by 24%
Operating Temperature Range32 to 104 °F (0 to 40 °C)
Relative Humidity0 to 95% non-condensing
Efficiency98% line-mode efficiency
Transfer Time5 ms (AC to Battery), 1 ms (Battery to AC)
High Voltage Transfer Setpoint145 V

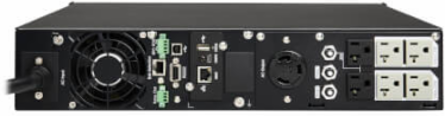

Output Receptacles(8) 5-15/20R; (1) L5-30R

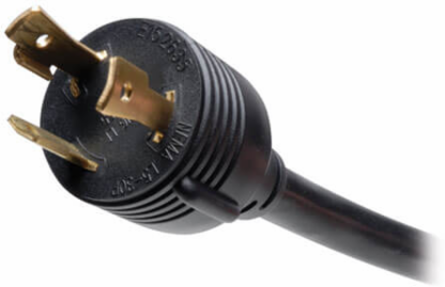

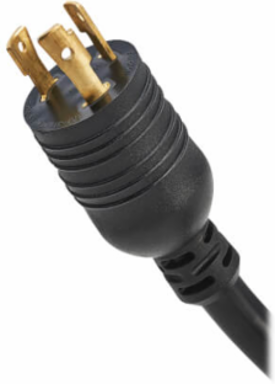

UPS Input Connection TypeNEMA L5-30P
Expandable RuntimeYes, up to 1600 W with external battery packs
Battery ReplacementHot-swappable, user replaceable batteries
Weight62.8 lbs (28.49 kg)
SwitchesPower ON/OFF, MODE, MUTE/ENTER (3 pushbutton switches)
LED IndicatorsNetwork Link/Activity, Network Speed (10/100 Mbps), LX Platform status

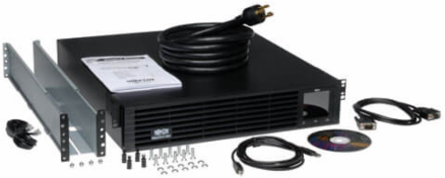

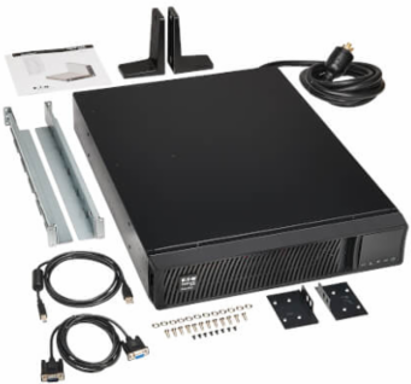

Mounting Accessories IncludedIncluded 4-post rackmount kit (4POSTRAILKIT)
Communications InterfacesDB9 Serial, EPO (RJ11), Micro-USB, Pre-installed WEBCARDLX Network Card, RJ45 Network, USB A, USB B (HID enabled)
Protocol SupportHTTP, HTTPS, SMTP, SNMPv1/v2/v3, telnet, SSH, FTP, DHCP, NTP
Grounding LugIncluded on back panel
Compliance & CertificationsFCC Part 15 Category A, RoHS, Tested to CSA, NOM, UL1778
