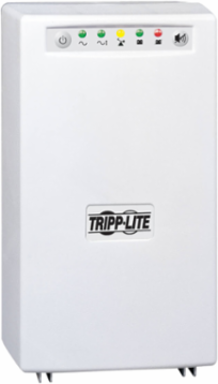

Tripp Lite SMX700HG SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9

SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9
SmartPro 230V 700VA 450W Medical-Grade Line-Interactive Tower UPS with 6 Outlets, Full Isolation, USB, DB9
  • MPN: SMX700HG
  • UPC: 037332140418
  • PPN: TRP-SMX700HG

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1685.23/ EA

Description

Provides UL 60601-1 compliant, medical-grade 700VA/450W power backup, ideal for use in patient-care vicinities. The built-in isolation transformer offers full isolation while maintaining AC surge protection in all modes.

Features

  • Supports a half load up to 36 minutes; full load up to 14.5 minutes

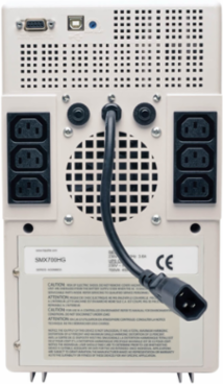

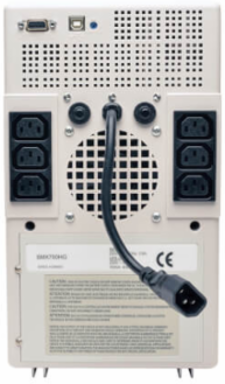

  • Six IEC320 C13 hospital-grade outlets and IEC320 C14 hospital-grade plug
  • Leakage current less than 100 microamps
  • Approved for use within the Patient Care Vicinity
  • Approved to EN60601-1-2:2015, 4th Edition
  • 340 joule surge suppression rating protects connected equipment
  • Alarm mute/alarm quiet control is ideal for use around patients
  • 2-year limited warranty

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating
340
AC Suppression Response Time
Instantaneous
EMI / RFI AC Noise SuppressionYes

Battery

Full Load Runtime (min.)
14.5 min. (450w)
DC System Voltage (VDC)
36
Internal UPS Replacement Battery Cartridge
RBC36SLT
Typical Battery Lifespan
3-6 years, depending on usage
Half Load Runtime (min.)36 min. (225w)
Battery Recharge Rate (Included Batteries)Less than 3.6 hours from 10% to 90% (typical, full load discharge)
Battery AccessBattery access door allows hot swap battery replacement without powering connected equipment off
Expandable RuntimeNo

Certifications

UPS Certifications
CE; Tested to UL60601-1 (medical grade)

Physical

Cooling Method
Cooling via rear-exit cooling fan
Primary Form Factor
Tower
Primary UPS Height (mm)
325
Shipping Dimensions (hwd / in.)
18.50 x 12.20 x 13.38
UPS Housing Material
PVC
UPS Power Module Weight (kg)
19.10
Installation Form Factors Supported with Optional AccessoriesWallmount (UPSWM - tower mounting kit)
Primary UPS Depth (mm)229
Primary UPS Width (mm)191
Shipping Weight (lbs.)45.40
UPS Power Module Dimensions (hwd, in.)12.8 x 7.5 x 9
UPS Power Module Weight (lbs.)42.1

User Interface, Alerts & Controls

Switches
Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Audible Alarm3 function audible alarm indicates power failure conditions (4 short beeps every 10 seconds), overload (continuous short beeps) and low battery (continuous tone). Audible Alarm is factory muted for silent operation; Audible alarm can be restored to indicate power failure, overload conditions and Low Battery events, using our Free PowerAlert UPS management software.

Voltage Regulation

Voltage Regulation Description
Line interactive UPS offers 2 boost levels of brownout correction and a single level of overvoltage adjustment to maintain usable, computer grade output without consuming battery power over an input voltage range of 155 to 274V AC
Undervoltage Correction
Input voltages between 183 and 199 are boosted by 10%
Overvoltage CorrectionInput voltages between 206 and 245V AC are reduced by 9%
Severe Undervoltage CorrectionInput voltages between 155 and 182 are boosted by 21%

Input

Rated input current (Maximum Load)
3.6A
UPS Input Connection Type
C14 inlet
Recommended Electrical Service
10A 230V
Input Phase
Single-Phase
Nominal Input Voltage(s) Supported230V AC
UPS Input Cord Length (ft.)0.50
Voltage Compatibility (VAC)230

Output

Output Volt Amp Capacity (VA)
700
Nominal Voltage Details
230v nominal inverter output voltage
Frequency Compatibility Details
Automatic frequency selection
Output AC Waveform (Battery Mode)
PWM sine wave
Output Receptacles
(6) C13
Output Watt Capacity (Watts)450
Frequency Compatibility50 / 60 Hz
Output Voltage Regulation (Line Mode)-18%, +8%
Nominal Output Voltage(s) Supported220V; 230V; 240V
Individually Controllable Load BanksNo

Communications

Communications Interface
USB; DB9 Serial

Environmental

Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Relative Humidity
0 to 95%, non-condensing
Battery Mode BTU / Hr. (Full Load)
189.1
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)208.6

Overview

UPC Code
037332140418
UPS TypeLine-Interactive

Special Features

Grounding Lug
Equipotential connection (back panel grounding lug)
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Warranty

Product Warranty Period (International)
2-year limited warranty

Line / Battery Transfer

Transfer Time
5 milliseconds
High Voltage Transfer to Battery Power (Setpoint)
274
Low Voltage Transfer to Battery Power (Setpoint)155
