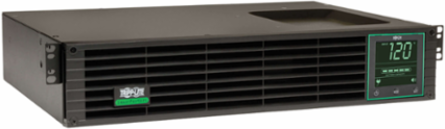

Tripp Lite SMART1000RM2UL SmartPro UPS, Lithium Battery Backup - 120V, 1kVA, 800W, Line Interactive, 2U, Sine Wave, LCD, 6 Outlets

SmartPro UPS, Lithium Battery Backup - 120V, 1kVA, 800W, Line Interactive, 2U, Sine Wave, LCD, 6 Outlets - https://media.province-electric.com/tripplite/2020q1/bc7644c392f14a733fb76675fb660466aa19f8a7-medium.png

SmartPro UPS, Lithium Battery Backup - 120V, 1kVA, 800W, Line Interactive, 2U, Sine Wave, LCD, 6 Outlets

Tripp Lite SMART1000RM2UL SmartPro UPS, Lithium Battery Backup - 120V, 1kVA, 800W, Line Interactive, 2U, Sine Wave, LCD, 6 Outlets

MPN: SMART1000RM2UL
UPC: 037332213099
PPN: TRP-SMART1000RM2UL

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3232.72/ EA

Qty:

Loading add to cart quantity...

Description

SmartPro UPS, Lithium Battery Backup - 120V, 1kVA, 800W, Line Interactive, 2U, Sine Wave, LCD, 6 Outlets

Features

Lithium UPS provides 1kVA capacity power protection for critical network components
LiFePO4 battery backup lasts longer and weighs less than equivalent lead acid battery
6 NEMA 5-15R outlets—4 of them switchable—deliver power to rack equipment
570-joule surge protection shields connected devices from damaging surges and spikes
High 95% line-mode efficiency helps save BTU heat output and energy costs
5-year limited warranty
$250,000 Ultimate Lifetime Insurance
Reliable LiFePO4 Battery Backup Offers Longer Life and Less Weight than Lead Acid Battery
120-Volt Battery Backup Keeps Equipment Operating Through Short Power Failures
Automatic Voltage Regulation (AVR) Conserves Battery Power
6 Outlets Protect Your Mission-Critical Rack Equipment
Premium Protection from EMI/RFI Line Noise Helps Your Equipment Perform Better
High Efficiency Helps the Environment and Your Cash Flow
Advanced Communications Ports Connect to Any Workstation or Server
Optional Network Management Cards Allow Detailed Monitoring of Conditions
Multi-Function LCD and Audible Alarms Keep You Informed
Versatile Installation Options

Specifications

Surge / Noise Suppression

UPS AC Suppression Joule Rating: 570

EMI / RFI AC Noise Suppression: Yes

UPS AC Suppression Response TimeInstantaneous

Battery

Full Load Runtime (min.): 8.3 min. (800w)

DC System Voltage (VDC): 24

Expandable Runtime: No

Half Load Runtime (min.)20 min. (400w)

Battery Recharge Rate (Included Batteries)2.7 hours from 10% to 90% (typical)

Certifications

UPS Certifications: Meets FCC Part 15 Category B (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)

UPS Certification DetailsUL 1778: 2014 R8.15 (5TH EDITION); CAN/CSA-C22.2 No. 107.3-14

Physical

Cooling Method: Fan

Installation Form Factors Supported with Included Accessories: 4 post 19 inch rackmount

Minimum Required Rack Depth (inches): 15.5

Primary Form Factor: Rackmount

Primary UPS Height (mm): 89

Rack Height: 2U

UPS Housing Material: Steel

UPS Power Module Weight (kg): 7.39

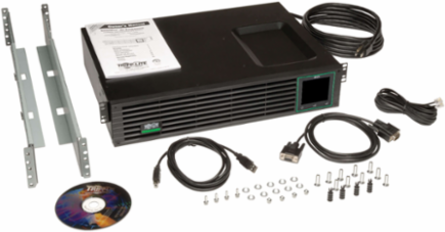

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)

Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )

Optional Mounting Accessory NotesOptional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support

Primary UPS Depth (mm)318

Primary UPS Width (mm)441

Shipping Dimensions (hwd / in.)8.70 x 18.50 x 23.30

UPS Power Module Dimensions (hwd, in.)3.5 x 17.35 x 12.5

UPS Power Module Weight (lbs.)16.3

User Interface, Alerts & Controls

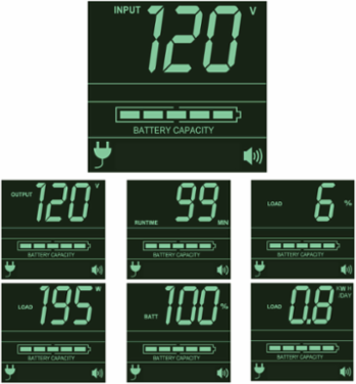

Front Panel LCD Display: Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)

Alarm Cancel Operation: Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available

Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions

Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions

Voltage Regulation

Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 147

Undervoltage Correction: Input voltages between 83 and 107 are boosted by 12%

Overvoltage CorrectionInput voltages between 127 and 147 are reduced by 12%

Input

Rated input current (Maximum Load): 9.2A (120V)

UPS Input Connection Type: 5-15P

Recommended Electrical Service: 15A 120V

Nominal Input Voltage(s) Supported120V AC

UPS Input Cord Length (ft.)10

Input PhaseSingle-Phase

Output

Output Volt Amp Capacity (VA): 1000

Output Watt Capacity (Watts): 800

Nominal Voltage Details: 120v nominal output in battery mode

Output Voltage Regulation (Battery Mode): +/- 5%

Output AC Waveform (AC Mode): Pure Sine wave

Nominal Output Voltage(s) Supported: 110V; 115V; 120V

Individually Controllable Load Banks: Yes

Output kVA Capacity (kVA)1.0

Power Factor0.8

Frequency Compatibility60 Hz

Load Management ReceptaclesTwo switchable two-outlet load banks

Output AC Waveform (Battery Mode)Pure Sine wave

Output Receptacles(6) 5-15R

Communications

Network Management Cards: SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD

Communications Cable: USB, DB9 and EPO cabling included

Network UPS Tools Compatibility: NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite

Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions

WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications

Communications InterfaceUSB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface

Environmental

Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius

Relative Humidity: Up to 95%, non-condensing

AC Mode Efficiency Rating (100% Load): 95%

Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius

AC Mode BTU / Hr. (Full Load)141

Audible Noise45.5 dBA maximum, front side 1m

Overview

UPC Code: 037332213099

UPS TypeLine-Interactive

Special Features

Grounding Lug: Back panel grounding lug

Green Energy-Saving Features: Individually controllable load banks

Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported

Warranty

Product Warranty Period (Worldwide): 5-year limited warranty

Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance

Line / Battery Transfer

Transfer Time: 4 milliseconds (AC to battery mode), 2 milliseconds (Battery to AC mode)

High Voltage Transfer to Battery Power (Setpoint): 147

Low Voltage Transfer to Battery Power (Setpoint)83
