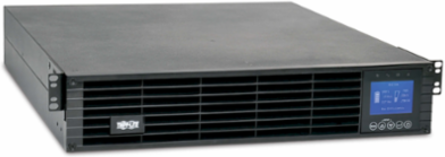

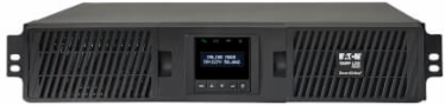

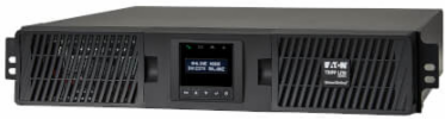

Tripp Lite SUINT1500LCD2U 1500VA Double-Conversion UPS, 6 Outlets, 2U Rackmount, USB, Pure Sine Wave
- MPN: SUINT1500LCD2U
- UPC: 037332248077
- PPN: TRP-SUINT1500LCD2U
CAD
$2653.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1500VA Double-Conversion UPS, 6 Outlets, 2U Rackmount, USB, Pure Sine Wave
Features
- Offers network-grade protection against power failures and voltage fluctuations
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Optional external battery packs provide additional runtime for applications requiring it
- Optional WEBCARDLX network interface required to use Auto Probe feature
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
- Set Power Strategies to Reflect Your Protection Priorities
- Individually Controllable Load Banks Let You Access and Control Outlets Remotely
- Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
- Automatic Bypass Maintains Utility Output During Fault Conditions
- ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
- Automatically Turns Back On After Power Is Restored
- Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
- Advanced Communications Ports Allow for Automatic Saves and Shutdowns
- Optional WEBCARDLX Network Interface Offers 24/7 Access

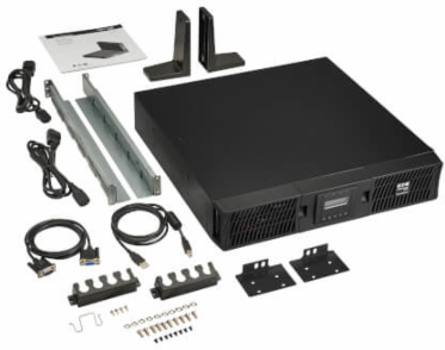

- Versatile Installation Options
Documentation & Downloads
Specifications
Additional
- Output Watt Capacity
- 1350 W
- Output kVA Capacity
- 1.5 kVA
- Power Factor
- 0.9
- Output Voltage Regulation (Line Mode)
- +/- 2%
- Transfer Time
- 0 ms (online), 2-12 ms (economy mode)
- AC Economy Mode Efficiency Rating (100% Load)
- >97%
- Output AC Waveform (AC Mode)
- Pure Sine wave
- Rated Input Current (Maximum Load)
- 7.49 A
- Nominal Input Voltages Supported
- 200V AC, 208V AC, 220V AC, 230V AC, 240V AC
- Low Voltage Transfer to Battery Setpoint
- 160V (100% load), 140V (66% load), 120V (33% load)
- Overvoltage Correction
- 2% output voltage regulation during overvoltages to 288V
- UPS Type
- On-Line Double-Conversion power conditioning
- Half Load Runtime
- 12.6 min (675 W)
- Battery System Voltage
- 36 VDC
- Battery Recharge Rate
- Less than 5.8 hours from 10% to 90% (typical, full load discharge)
- Rackmount Units
- 2U
- Operating Temperature Range
- 0 to 40 °C (32 to 104 °F)
- Relative Humidity
- 5 to 95%, non-condensing
- Cooling Method
- Fan
- Load Management Receptacles
- Two switchable 2-outlet load banks (individually controllable)
- Installation Form Factors Supported (with Optional Accessories)

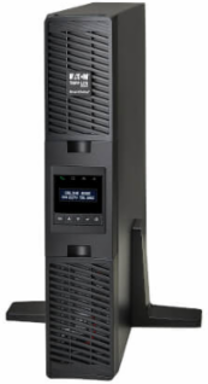

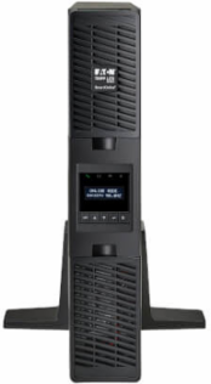

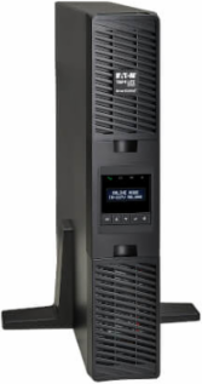

- 2 post rackmount, 2-4 post front rail rackmount, 4 post rackmount short-depth, Tower, Wallmount (various accessory kits)
- Communications Interface
- USB (HID enabled), DB9 Serial, Contact closure, EPO, SNMP/Web interface slot
- LED Indicators
- 4 front panel LEDs: AC input (green), AC output (green), Battery (yellow), Fault (red)

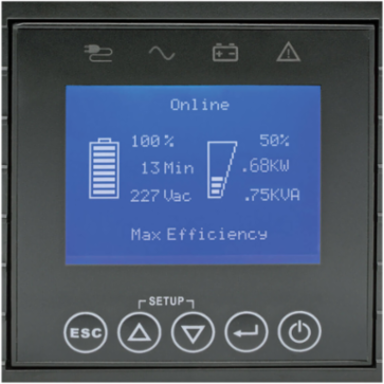

- Front Panel LCD Display
- Interactive LCD shows UPS mode, status, site power, and enables advanced setup
- Cold Start
- Supported (startup in battery mode during power failure)
- UPS Housing Material
- Metal
- Crest Factor
- 3:1
- Connected Equipment Insurance (U.S., Canada & Puerto Rico)
- $250,000 Ultimate Lifetime Insurance
Output Volt Amp Capacity1500 VA
Output kW Capacity1.35 kW
Output Voltage Regulation (Battery Mode)+/- 2%
Output Voltage Regulation (Economy Line Mode)+/- 10%
Surge Suppression Joule Rating936 J
AC Mode Efficiency Rating (100% Load)>93%
Output AC Waveform (Battery Mode)Pure Sine wave
Input PhaseSingle-Phase
Nominal Output Voltages Supported200V, 208V, 220V, 230V, 240V (user-configurable at first power-on)
High Voltage Transfer to Battery Setpoint288V
Undervoltage Correction2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load)
Full Load Runtime4.5 min (1350 W)
Expandable Battery RuntimeSupports extended runtime with optional external battery packs
Battery ReplacementHot-swappable, replaceable batteries (RBC36S)
Weight44.88 lbs (20.36 kg)
Dimensions (H x W x D)3.46 x 17.24 x 19.53 in (88 x 438 x 496 mm)
Storage Temperature Range-15 to 50 °C (5 to 122 °F)

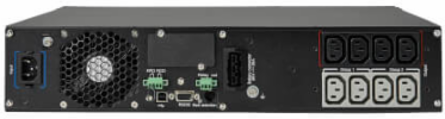

Input Connection TypeC14 inlet
Output Receptacles6 C13

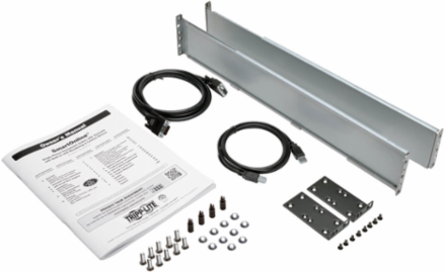

Installation Form Factors Supported (with Included Accessories)4 post 19 inch rackmount
PowerAlert SoftwareAvailable for local monitoring via built-in communication ports
Network Management CardsSNMPWEBCARD, WEBCARDLX
Audible AlarmIndicates power failure, low battery, overload, fault
Alarm Cancel OperationPower-fail alarm silenced via on-screen prompts
Grounding LugBack panel grounding lug included
UPC Code037332248077
CertificationCE, ENERGY STAR, CSA, EAC, SASO, UL1778, IEC62040-1:2008+A1; UL1778 5th edition, IEC62040-2:2006, FCC Part 15 EMI approvals
