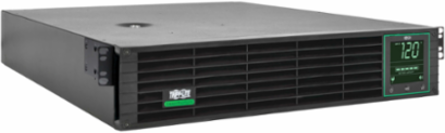

Tripp Lite SMART3000RM2UL SmartPro UPS, Lithium Battery Backup - 120V 3kVA Line Interactive, 2U, Sine Wave, LCD
Tripp Lite SMART3000RM2UL SmartPro UPS, Lithium Battery Backup - 120V 3kVA Line Interactive, 2U, Sine Wave, LCD
- MPN: SMART3000RM2UL
- UPC: 037332207159
- PPN: TRP-SMART3000RM2UL
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
SmartPro UPS, Lithium Battery Backup - 120V 3kVA Line Interactive, 2U, Sine Wave, LCD
Features
- Provides 3kVA/2.25kW capacity power protection for critical network components
- LiFePO4 battery backup lasts longer and weighs less than equivalent lead acid battery
- One NEMA L5-30R and 8 NEMA 5-15/20R outlets deliver power to rack equipment
- 570-joule surge protection shields connected devices from damaging surges and spikes
- High 98% line mode efficiency saves BTU heat output and reduces operating costs
- To enable the Auto Probe feature, this product requires LX firmware update 15.5.2 or later to be installed
- 5-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Reliable LiFePO4 Battery Backup Offers Longer Life and Less Weight than Lead Acid Battery
- 120-Volt Battery Backup Keeps Equipment Operating Through Short Power Failures
- Protect Your Mission-Critical Rack Equipment
- High Efficiency Operation Helps the Environment and Your Cash Flow
- Advanced Communications Ports Connect to Any Workstation or Server
- Multi-Function LCD and Audible Alarms Keep You Informed
- Versatile Installation Options
- 5-Year Warranty and $250K Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 570
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 3.5 min. (2250w)
- DC System Voltage (VDC)
- 48
- Expandable Runtime
- No
Half Load Runtime (min.)9.5 min. (1125w)
Battery Recharge Rate (Included Batteries)1.7 hours from 10% to 90% (typical, full load discharge)
Certifications
- UPS Certifications
- Meets FCC Part 15 Category A (EMI); ROHS (Restriction of Hazardous Substances); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
UPS Certification DetailsSAFETY STANDARD (U.S.) - UL1778:2014 (5th Ed) R10.17; SAFETY STANDARD (CANADA) - CAN/CSA-C22.2 No. 107.3-14 (3rd Ed) + GI1 / FCC/ICES COMPLIANT - CLASS A
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Minimum Required Rack Depth (inches)
- 24.46
- Primary Form Factor
- Rackmount
- Primary UPS Height (mm)
- 87
- Rack Height
- 2U
- Shipping Weight (lbs.)
- 63.90
- UPS Power Module Dimensions (hwd, in.)
- 3.43 x 17.32 x 19.46
- UPS Power Module Weight (lbs.)
- 50.1

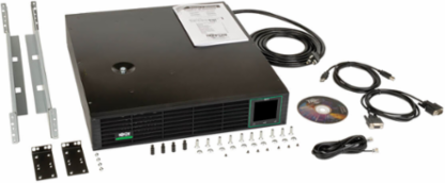

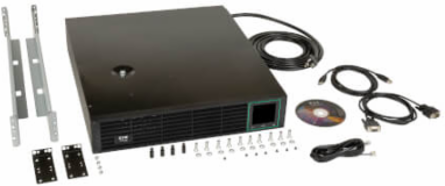

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Optional Mounting Accessory NotesOptional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support
Primary UPS Depth (mm)494
Primary UPS Width (mm)440
Shipping Dimensions (hwd / in.)8.40 x 23.80 x 21.70
UPS Housing MaterialSteel
UPS Power Module Weight (kg)22.72
User Interface, Alerts & Controls

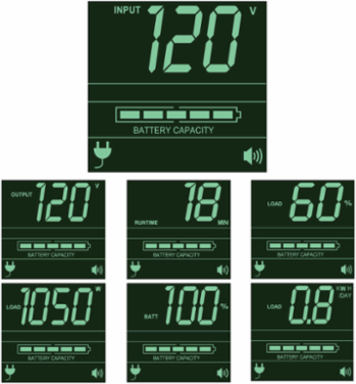

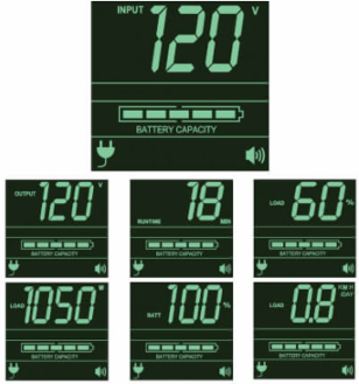

- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
- Undervoltage Correction
- Input voltages between 108 and 96 are boosted by 12%
Overvoltage CorrectionInput voltages between 127 and 145 are reduced by 12%
Severe Undervoltage CorrectionInput voltages between 83 and 95 are boosted by 24%
Input
- Rated input current (Maximum Load)
- 24A (120V)
- UPS Input Connection Type

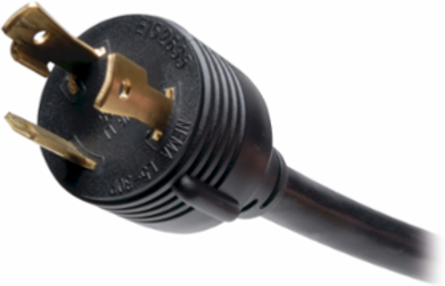

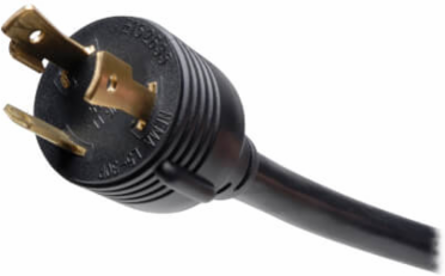

- L5-30P
- Recommended Electrical Service
- 30A 120V
Nominal Input Voltage(s) Supported110V AC; 115V AC; 120V AC
UPS Input Cord Length (ft.)10
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 3000
- Output Watt Capacity (Watts)
- 2250
- Power Factor
- 0.75
- Frequency Compatibility
- 60 Hz
- Output Voltage Regulation (Battery Mode)
- +/- 5%
- Output AC Waveform (AC Mode)
- Pure Sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- Yes
Output kVA Capacity (kVA)3.0
Output kW Capacity (kW)2.25
Nominal Voltage Details120v nominal output in battery mode
Output Voltage Regulation (Line Mode)-14%, +6%
Load Management ReceptaclesTwo switchable single-outlet load banks
Output AC Waveform (Battery Mode)Pure Sine wave

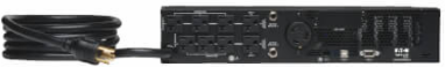

Output Receptacles(8) 5-15/20R; (1) L5-30R
Communications
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD
- PowerAlert Software
- Available via free download from tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Communications Interface
- USB (HID enabled); DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions
Communications CableUSB, DB9 and EPO cabling included
Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- AC Mode Efficiency Rating (100% Load)
- 98%
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)189
Audible Noise50.3 dBA maximum, front side 1m
Overview
- UPC Code
- 037332207159
UPS TypeLine-Interactive
Special Features
- Grounding Lug
- Back panel grounding lug
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Warranty
- Product Warranty Period (Worldwide)
- 5-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 5 milliseconds (AC to battery mode), 1 millisecond (Battery to AC mode)
- High Voltage Transfer to Battery Power (Setpoint)
- 145
Low Voltage Transfer to Battery Power (Setpoint)83
