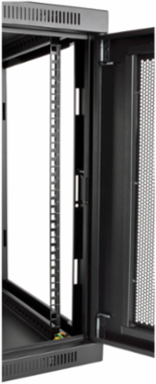

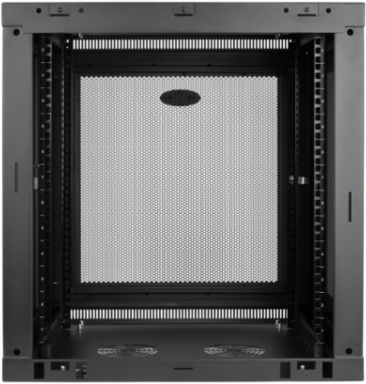

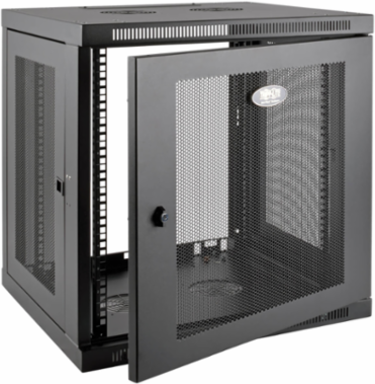

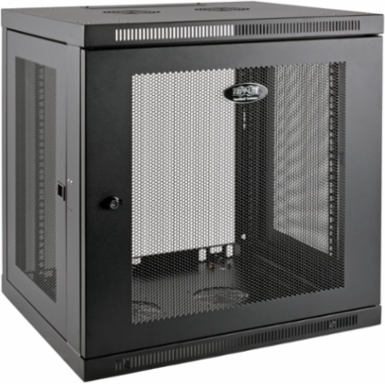

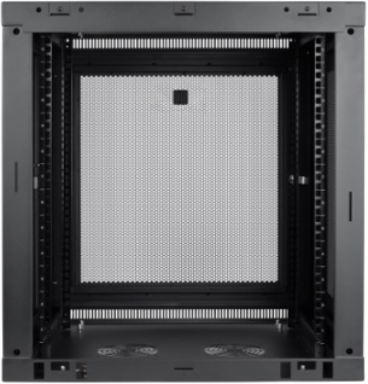

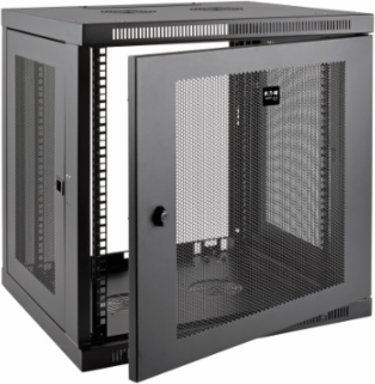

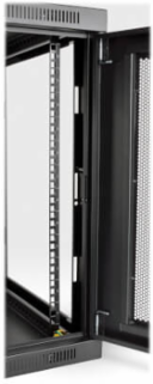

Tripp Lite SRW12UDP 12U Wall-Mount Rack Enclosure Cabinet, 20.5 Inch Depth, 200 lb Capacity
- MPN: SRW12UDP
- UPC: 037332191472
- PPN: TRP-SRW12UDP
CAD
$1055.70
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Wall-mount cabinet secures and organizes 12U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Houses network switches and patch panels up to 20.5 inches deep.
Features
- Maximum load capacity of 200 lb.
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 20.5 in. deep
- Mounts to wall or rolls on floor (with optional SRCASTER)
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Rack Height
- 12U
- Weight Capacity - Stationary
- 200 lb.
- Compliance
- RoHS, PCI DSS
- Unit Weight
- 58.4 lb.
- Cable Access Hole Size
- 9.812 x 2.35 in.
- Rack Type
- Enclosure
- Minimum Device Depth
- 3 in.
- Mounting Type
- Wall-mount
- Door Function
- Reversible front door, opens left or right
- Mounting Rail Compatibility
- Square-hole or 12-24 threaded-hole
- Material
- Steel
Maximum Device Depth20.5 in.
CertificationsEIA-310-E, IP20
Unit Dimensions (H x W x D)25.08 x 23.62 x 21.75 in.
Rack DepthShallow
ColorBlack
Grounding LugFront and Back door frames
FinishBlack powder-coated
Mounting Hole Spacing16 in.
Rail Adjustment Increment7/8 in.
VentilationVented sides, front, top and bottom
Warranty5-year limited warranty
