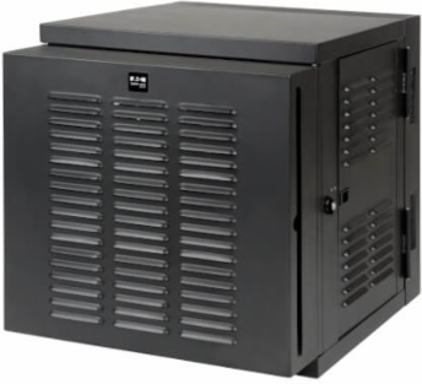

Tripp Lite SRW12USNEMA 12U NEMA 12 Wall-Mount Rack Enclosure Cabinet, 20.5 Inch Depth, 200 lb Capacity
- MPN: SRW12USNEMA
- UPC: 037332168016
- PPN: TRP-SRW12USNEMA
CAD
$1927.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

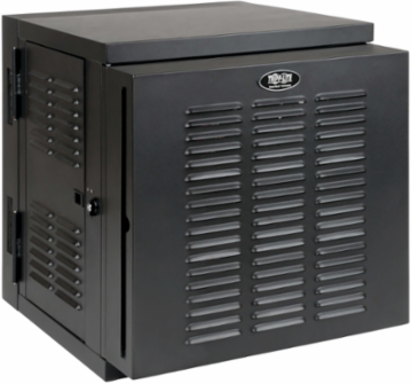

Wall-mount cabinet secures and organizes 12U of 19-inch rack equipment up to 20.5 inches deep in harsh, dirty work environments with limited floor space, such as factories, construction areas, utility plants and warehouses.
Features
- Maximum load capacity of 200 lb.
- NEMA 12 (IP54) rating against dirt, dust, drips and splashes

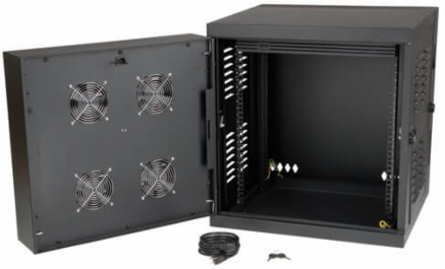

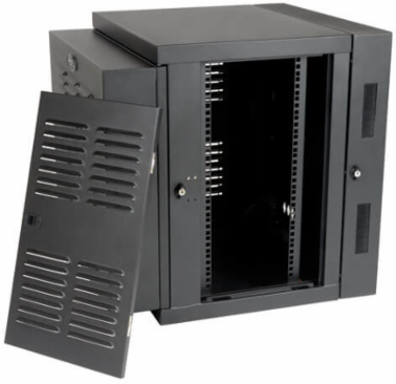

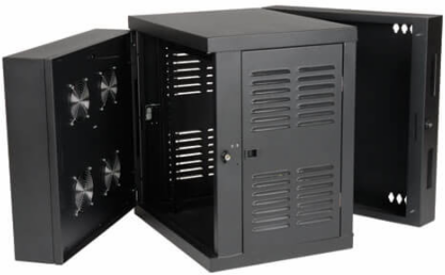

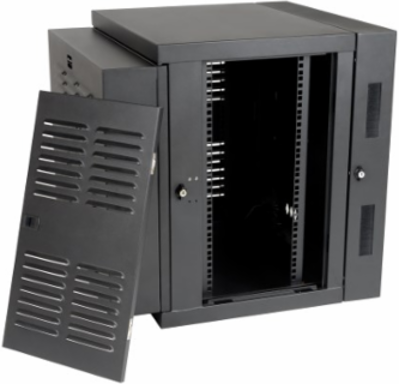

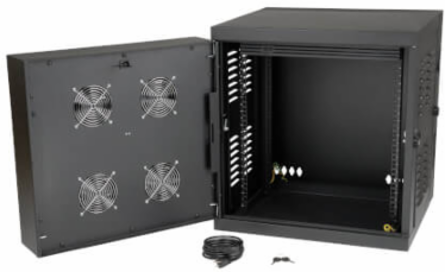

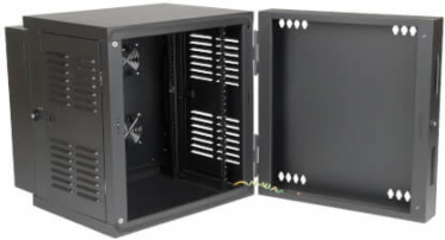

- Swings away from wall on hinge for easy back-door access

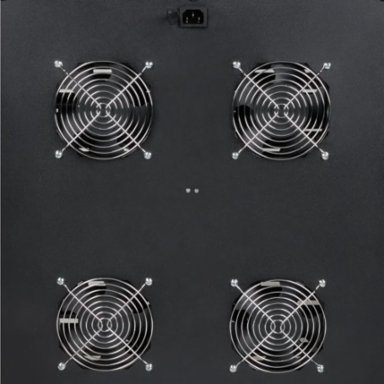

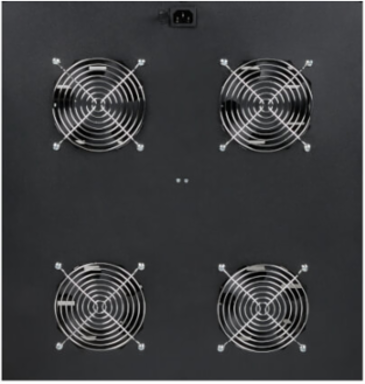

- Locking steel cabinet with built-in ventilation fans
- Secures 12U of 19 in. rack equipment up to 20.5 in. deep
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Weight Capacity
- 200 lb
- Rack Height
- 12U
- Minimum Device Depth
- 3 in
- Unit Weight
- 60 lb
- Input Cord Length
- 6 ft
- Shipping Weight
- 90 lb
- Grounding Lug Location
- Front and Back door frames
- Color
- Black
- Material
- Heavy-duty steel
- Warranty
- 2-year limited
Input Voltage120V AC 50/60 Hz
Maximum Device Depth20.5 in
Rack Depth10.42 in
Input Plug TypeNEMA 5-15P
Unit Dimensions25 x 23.63 x 21.6 in
Shipping Dimensions28 x 26 x 29 in
Rack TypeEnclosure
FinishBlack powder-coated
ComplianceEIA-310-E, IEC 60297-3-100, IP54, RoHS
