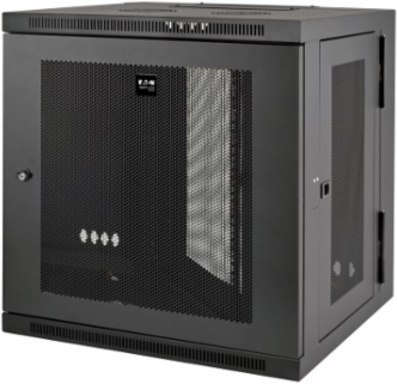

Tripp Lite SRW12US 12U Low-Profile Wall-Mount Rack Enclosure Cabinet, 20.5 Inch Depth, 200 lb Capacity
- MPN: SRW12US
- UPC: 037332148674
- PPN: TRP-SRW12US
CAD
$1019.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

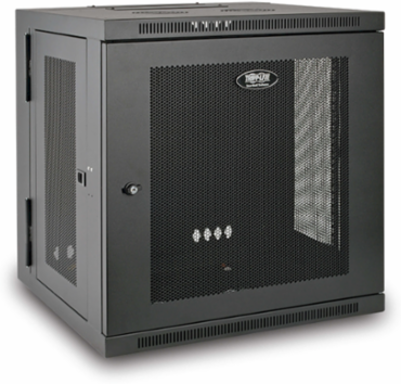

Wall-mount cabinet secures and organizes 12U of 19-inch rack equipment in network closets, classrooms and other locations with limited floor space. Houses network switches and patch panels up to 20.5 inches deep.
Features
- Maximum load capacity of 200 lb.

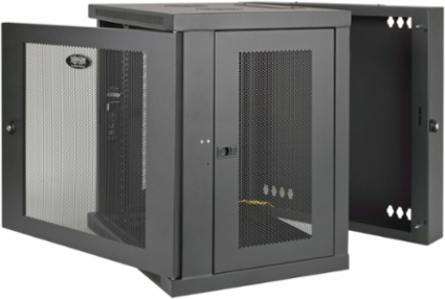

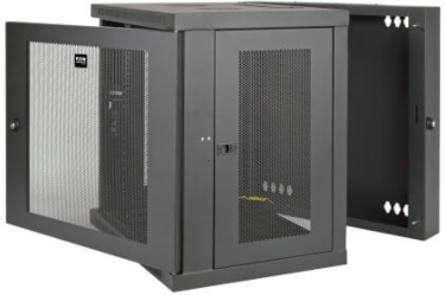

- Swings away from wall on hinge for easy back-door access
- Locking steel cabinet vented at sides, front, top and bottom
- Flow-through ventilation keeps equipment cool
- Secures 12U of 19 in. rack equipment up to 20.5 in. deep
- 5-year limited warranty
Documentation & Downloads
Specifications
Additional
- Weight Capacity
- 200 lb.
- Maximum Device Depth
- 20.5 in.
- Rack Depth
- Shallow, Factory Preset 10.42 in.
- Shipping Dimensions
- 24.3 x 26 x 27.8 in.
- Cable Access Hole Size
- 9.812 x 2.35 in. (l x w)
- Color
- Black
- Minimum Device Depth
- 3 in.
- Material
- Steel
- Mounting Type
- Wall-mount, optional caster kit for mobility
- Ventilation
- Vented sides, front, top, bottom with removable side panels
- Vertical Rail Adjustment Increment
- 7/8 in.
- Cable Access Ports
- Top and bottom ports with removable covers
- Compliance
- PCI DSS, UL/CSA 60950-1, EIA-310-E, IEC 60297-3-100, IP20, RoHS
Rack Height12U
Unit Weight60 lb.
Shipping Weight64 lb.
Unit Dimensions25 x 23.63 x 21.6 in.
Grounding Lug LocationFront and Back door frames
Rack TypeEnclosure
Rack Equipment Width19 in.
FinishBlack powder-coated
Door TypeHinged, reversible (180° rotation)

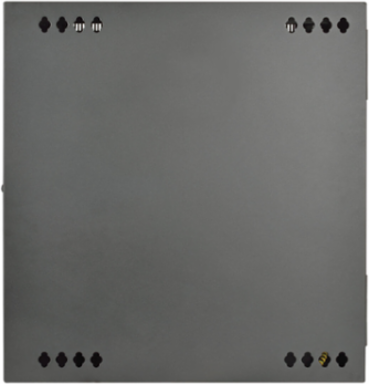

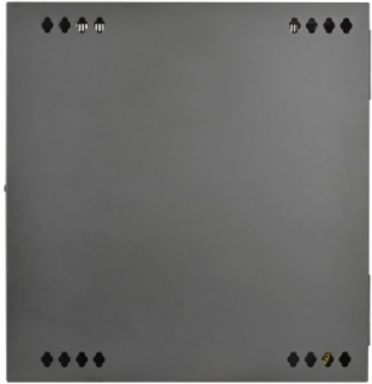

Mounting Hole Spacing16 in. for standard wall stud placement

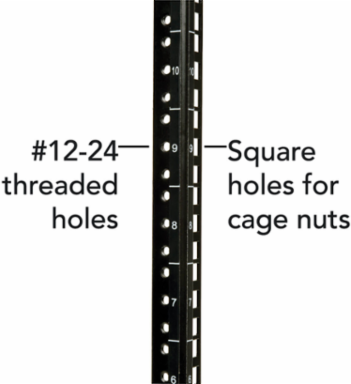

Mounting Hole CompatibilitySquare-hole or 12-24 threaded-hole
Security FeaturesLocking doors and side panels
Warranty5-year limited warranty
