Tripp Lite SRW6UG 6U Low-Profile Wall-Mount Rack Enclosure Cabinet, Max Depth 16.5 Inch, Black
- MPN: SRW6UG
- UPC: 037332187277
- PPN: TRP-SRW6UG
CAD
$507.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

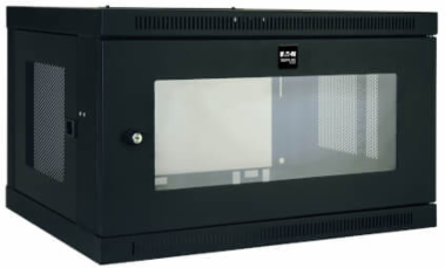

SmartRack 6U Low-Profile Switch-Depth Wall-Mount Mini Rack Enclosure with Clear Acrylic Window

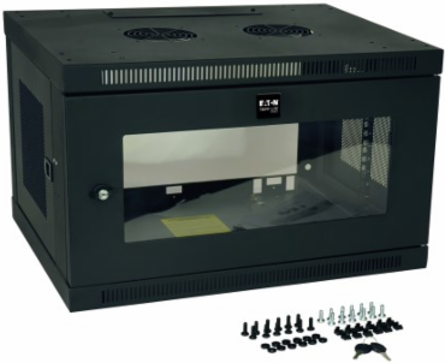

Features
- Removable mounting plate
- (12) M6 screws
- (12) M6 cage nuts
- (12) M6 cup washers
- (12) 12-24 screws
- (3) Mounting plate screws
- (2) Keys
- Owner's manual
Documentation & Downloads
Specifications
Additional
| Rack Height | 6U |
|---|---|
| Weight Capacity - Stationary (lbs.) | 200 lb |
| Unit Dimensions (H x W x D) | 14.5 x 23.5 x 17.5 in. |
| Shipping Weight | 35 lb |

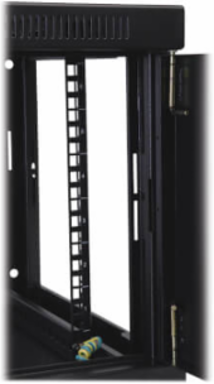

| Grounding Lug | Front and back door frames |
| Product Warranty Period | 5-year limited |
| Color | Black |
| Finish | Black powder-coated |
| Minimum Device Depth | 3 in. |

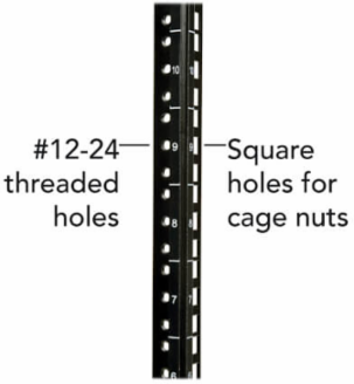

| Mounting Hole Thread Types | Square-hole, 12-24 threaded-hole |
| Adjustable Rail Increment | 7/8 in. |
| Ventilation | Vented panels on top, bottom, removable sides |
| Locking | Front door and side panels lockable |
| Front Window Material | Shatter-resistant clear acrylic |
| Maximum Device Depth | 16.5 in. |
|---|---|
| Unit Weight (lbs.) | 29 lb |
| Cable Access Hole Measurement (in.) | 9.812 x 2.35 in. |
| Shipping Dimensions (H x W x D) | 17.3 x 25.8 x 19.9 in. |
| Certifications | UL/CSA 60950-1, EIA-310-E, IP20, RoHS |
| Rack Depth | Shallow |
| Material | Steel |
| Rack Type | Enclosure |
| Mounting Type | Wall-mount, optional rolling caster kit |
| Rack Space Numbering | Numbered for easy reference |
| Cable Access | Top and bottom ports with removable covers |
| Door | Reversible front door opens left or right |
| Wall Mounting Hole Spacing | 16 in. apart |
