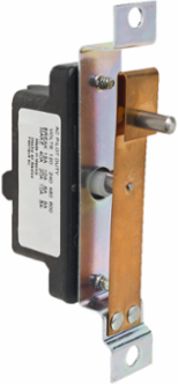

Telemecanique Sensors 9007CO6 Snap basic limit switch, 9007, plunger, 2 NO, plug in
- MPN: 9007CO6
- UPC: 785901809517
- PPN: TES-9007CO6
CAD
$142.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Snap basic limit switch, 9007, plunger, 2 NO, plug in
Documentation & Downloads
Specifications
Key Specifications
| Series Name | heavy duty |
|---|---|
| Range Of Product | 9007 |
| Device Short Name | 9007AO/CO |
| Body Type | plug-in |
|---|---|
| Product Or Component Type | snap basic limit switch |
Complementary
| Switch Actuation | on end |
|---|---|
| Height | 2.5 in |
| Terminals Description Iso N°1 | (7-8)NO || (3-4)NO |
| Electrical Connection | 1-2 6 binder head screw terminals AWG 22...AWG 14) |
| Number Of Steps | 1 |
| Operator Material | cast zinc |
| Fixing Mode | by the body |
| Maximum Force For Tripping | 0.75 lbf |
| Operator Profile | plunger head |
| [Ithe] Conventional Enclosed Thermal Current | 10 A |
| Contacts Type And Composition | 2 NO DPST-NO-DB |
| Width | 0.83 in |
| Material | metal |
| Number Of Poles | 2 |
| Type Of Approach | vertical approach, 1 direction |
|---|---|
| Movement Of Operating Head | linear |
| [Ui] Rated Insulation Voltage | 600 V 3)UL 508 contact block || 600 VCSA C22.2 No 14 contact block |
| Positive Opening | without |
| Contact Operation | snap action |
| [Ie] Rated Operational Current | 0.1 A 600 V DC, Q600 NEMA rating designation || 0.6 A 600 V AC, B600 NEMA rating designation || 0.75 A 480 V AC, B600 NEMA rating designation || 1.5 A 240 V AC, B600 NEMA rating designation || 3 A 120 V AC, B600 NEMA rating designation || 0.3 A 250 V DC, Q600 NEMA rating designation || 1 A 125 V DC, Q600 NEMA rating designation |
| Contacts Material | silver contacts |
| Type Of Operator | spring return plunger plastic with thermoplastic end |
| Body Material | cast zinc |
| Contact Form | Form AA |
| Minimum Force For Tripping | 0.44 lbf |
| Depth | 1.14 in |
| Net Weight | 0.5 lb(US) |
Environment
| Ambient Air Temperature For Operation | -20-185 °F |
|---|---|
| Nema Degree Of Protection | NEMA 1 Nema type 250 |
| Ambient Air Temperature For Storage | -20-185 °F |
|---|---|
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Environmental Disclosure | ENVPEP111160EN |
|---|---|
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Eu Rohs Directive | Not applicable, out of EU RoHS legal scope |
|---|---|
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
