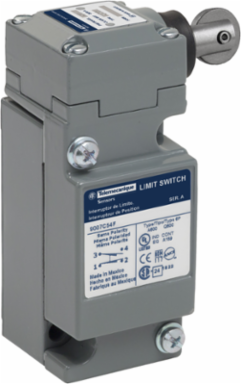

Telemecanique Sensors 9007C62F Limit switch 9007C, 600 V, 10 A, option version, Steel spring return side roller plunger with vertical roller (vertical convertible to horizontal), switch function DPDT-DB
- MPN: 9007C62F
- UPC: 785901500759
- PPN: TES-9007C62F
CAD
$401.45
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Limit switch 9007C, 600 V, 10 A, option version, Steel spring return side roller plunger with vertical roller (vertical convertible to horizontal), switch function DPDT-DB
Documentation & Downloads
Specifications
Key Specifications
| Indivisible sale quantity | 1 |
|---|
| Commercial status | Commercialised |
|---|
Complementary
| Body material | Zinc |
|---|---|
| Switch function | DPDT-DB |
| Contacts material | Silver contacts |
| Repeat accuracy | +/- 0.001 in linear travel of cam |
| Head material | Zinc |
|---|---|
| Contact form | Form ZZ |
| Terminals description ISO n°1 | (1-2)NC (3-4)NO (5-6)NC (7-8)NO |
| Local signalling | without |
Main
| Range of product | 9007 |
|---|---|
| Product or component type | Limit switch |
| Body type | Plug-in |
| Material | Metal |
| Movement of operating head | Linear |
| Switch actuation | By 30° cam |
| Electrical connection | Screw-clamp terminals (AWG 22...AWG 12), 1-2 |
| Contacts type and composition | 2(NC-NO) |
| Positive opening | Without |
| Series name | Heavy duty |
|---|---|
| Product specific application | Standard box |
| Head type | Plunger head |
| Fixing mode | By the body |
| Type of operator | Steel spring return side roller plunger with vertical roller (vertical convertible to horizontal) |
| Type of approach | Vertical approach, 2 directions |
| Cable entry | 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1 |
| Contact operation | Snap action |
Environment
| Shock resistance | 60 gn for 9 ms conforming to IEC 60068-2-27 |
|---|---|
| NEMA degree of protection | NEMA 1 conforming to Nema type 250, NEMA 2 conforming to Nema type 250, NEMA 4 conforming to Nema type 250, NEMA 6 conforming to Nema type 250, NEMA 6P conforming to Nema type 250, NEMA 12 conforming to Nema type 250, NEMA 13 conforming to Nema type 250 |
| Electrical shock protection class | Class 0 conforming to IEC 61140 |
| Protective treatment | Epoxy powder coat |
| Vibration resistance | 25 gn (f= 10-150 Hz) conforming to IEC 60068-2-6 |
|---|---|
| IP degree of protection | IP67 conforming to IEC 60529 |
| Environmental characteristic | Standard environment |
