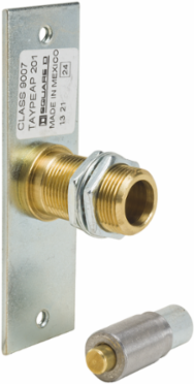

Telemecanique Sensors 9007AP201 Snap limit switch operator, 9007, 600 VAC 15amp ap +options

MPN: 9007AP201
UPC: 785901759317
PPN: TES-9007AP201
UNSPSC: 39122209

$59.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Snap limit switch operator, 9007, 600 VAC 15amp ap +options

Documentation & Downloads

Specifications

Key Specifications

Series Name	heavy duty
Product Or Component Type	snap limit switch operator

Range Of Product	9007
Device Short Name	9007AO/CO

Complementary

Switch Actuation	on end
Height	2.5-2.5 in
Fixing Mode	by the head
Operator Profile	plunger head
Depth	1.1 in
Net Weight	0.1 lb(US)

Type Of Approach	1 direction vertical approach
Movement Of Operating Head	linear
Type Of Operator	spring return plunger metal
Width	0.83 in
Product Compatibility	snap basic limit switch

Environment

Ambient Air Temperature For Operation	-20-185 °F
Nema Degree Of Protection	NEMA 1 Nema type 250

Ambient Air Temperature For Storage	-20-185 °F
Ip Degree Of Protection	IP20 conforming to IEC 60529

Contractual warranty

Warranty	18 months

Offer Sustainability

Environmental Disclosure	ENVPEP111160EN
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

Eu Rohs Directive	Not applicable, out of EU RoHS legal scope
California Proposition 65	WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
