Weidmuller

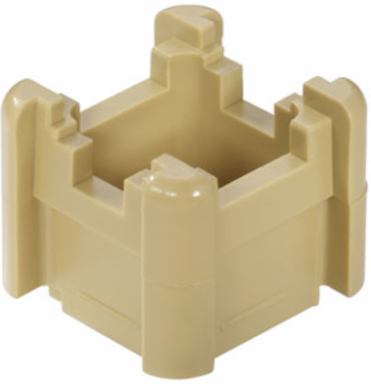

Weidmuller 0401460000 SO SH1

SO SH1
  • MPN: 0401460000
  • PPN: WDM-0401460000

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1.42/ EA

Description

Accessories, Rail support, Polyamide 66

Specifications

Approvals

ROHS
Conform

Dimensions And Weights

Width
24.5 mm
Height
24.5 mm
Depth
20.6 mm
Net weight
4.385 g
Width (inches)0.965 inch
Height (inches)0.965 inch
Depth (inches)0.811 inch

Additional Technical Data

Type of mounting
when screwed in

Material Data

Material
Polyamide 66
UL 94 flammability rating
V-2
Colourgrey

Classifications

ETIM 6.0
EC001166
eClass 9.0
27-40-06-07
eClass 10.0
27-40-06-07
ETIM 7.0EC001166
eClass 9.127-14-11-92
UNSPSC30-21-18-01

System Specifications

Version
For the mounting rails
RailTS 15

Temperatures

Continuous operating temp., min.
-50 °C
Continuous operating temp., max.100 °C

Conductors For Clamping (Rated Connection)

Type of connection
Miscellaneous
