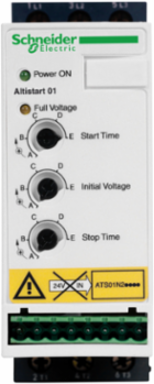

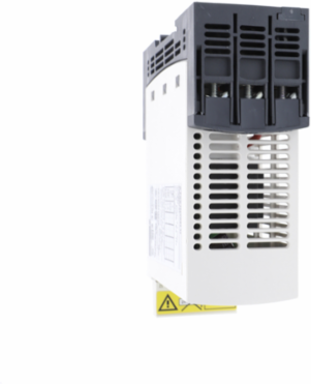

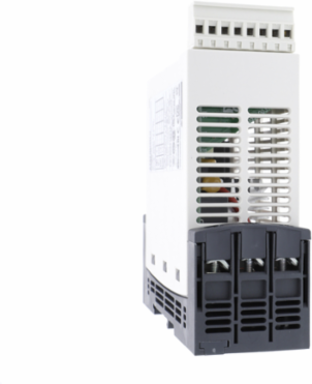

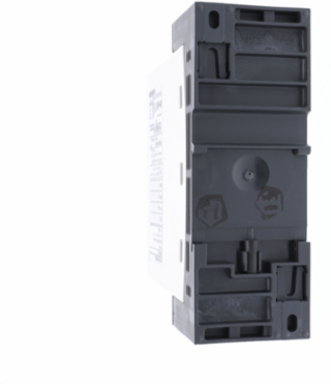

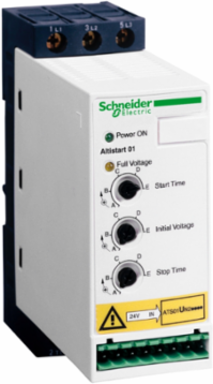

Schneider Electric ATS01N206LU Altistart 01 Soft Starter, 6A, 200-240V, 0.75-1.1kW, DIN Rail
Schneider Electric ATS01N206LU Altistart 01 Soft Starter, 6A, 200-240V, 0.75-1.1kW, DIN Rail
- MPN: ATS01N206LU
- PPN: SCH-ATS01N206LU
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$332.69/ EA
Description
This Altistart 01 soft starter is DIN rail mounted and can feed 3-phase asynchronous motors with a rating up to 6A. This Altistart 01 can be used for a motor rated power up to 1.1kW or 1.5hp for 3-phase (200V to 240V AC). This DIN rail mounted soft starter is designed to enable smooth start for simple machines such as conveyors, conveyor belts, pumps, fans, compressors, automatic doors and gates, small cranes and belt-driven machinery. It is 45mm wide, this makes it one of the smallest soft starters on the market, it can be installed nearly everywhere. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Simple setup with only 2 settings, possible to configure by non-specialists. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.
Specifications
Environment
- Product Certifications
- GOST || CSA || UL || CCC || C-Tick
- Electromagnetic Compatibility
- conducted and radiated emissions level B CISPR 11 || conducted and radiated emissions level B IEC 60947-4-2 || damped oscillating waves level 3 IEC 61000-4-12 || electrostatic discharge level 3 IEC 61000-4-2 || EMC immunity level 3 EN 50082-1 || EMC immunity level B EN 50082-2 || harmonics level 3 IEC 1000-3-2 || harmonics level 3 IEC 1000-3-4 || immunity to conducted interference caused by radio-electrical fields level 3 IEC 61000-4-6 || immunity to electrical transients level 4 IEC 61000-4-4 || immunity to radiated radio-electrical interference level 3 IEC 61000-4-3 || micro-cuts and voltage fluctuation IEC 61000-4-11 || voltage/current impulse level 3 IEC 61000-4-5
- Shock Resistance
- 15 gn 11 ms EN/IEC 60068-2-27
- Pollution Degree
- 2 EN/IEC 60947-4-2
- Relative Humidity
- 5-95 % without condensation or dripping water EN/IEC 60068-2-3
- Operating Altitude
- <= 1000 m without derating || > 1000 m with current derating of 2.2 % per additional 100 m
StandardsEN/IEC 60947-4-2
Ambient Air Temperature For Operation-10-40 °C without derating) || 40-50 °C with current derating of 2 % per °C)
Vibration Resistance1 gn 13-150 Hz)EN/IEC 60068-2-6 || 1.5 mm peak to peak 3-13 Hz)EN/IEC 60068-2-6
Ambient Air Temperature For Storage-25-70 °C EN/IEC 60947-4-2
Ip Degree Of ProtectionIP20
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Electrical Connection
- 4 mm screw clamp terminal - rigid 1 1...10 mm² AWG 8 power circuit || screw connector - rigid without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - rigid 2 1...6 mm² AWG 10 power circuit || screw connector - rigid 2 0.5...1 mm² AWG 17 control circuit || screw connector - flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit || 4 mm screw clamp terminal - flexible without cable end 1 1.5...10 mm² AWG 8 power circuit || screw connector - flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit || 4 mm screw clamp terminal - flexible with cable end 2 1...6 mm² AWG 10 power circuit || 4 mm screw clamp terminal - flexible without cable end 2 1.5...6 mm² AWG 10 power circuit || screw connector - flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit
- [Uc] Control Circuit Voltage
- built into the starter
- Deceleration Time Symb
- adjustable from 1 to 10 s
- Maximum Switching Current
- relay outputs 2 A 250 V AC cos phi = 0.5 20 ms inductive || relay outputs 2 A 30 V DC cos phi = 0.5 20 ms inductive
- Marking
- CE
- Net Weight
- 0.42 kg
- Motor Starter Type
- soft starter
- Supply Voltage Limits
- 180-264 V
- Minimum Switching Current
- 10 mA 6 V DC relay outputs
- Assembly Style
- with heat sink
- Output Voltage
- <= power supply voltage
- Display Type
- 1 LED green)starter powered up || 1 LED yellow)nominal voltage reached
- Depth
- 131 mm
- Starting Torque
- 30...80 % of starting torque of motor connected directly on the line supply
- Supply Frequency
- 50...60 Hz - 5...5 %
Network Frequency47.5...63 Hz
Height124 mm
Discrete Input Voltage24...40 V
Discrete Output Voltage24 V 6...30 V) open collector logic
Power Range0.55-1 kW 200-240 V 3 phases || 1.1-2 kW 200-240 V 3 phases
Discrete Output Current2 A DC-13 || 3 A AC-15
Function Availableintegrated bypass
Starting Time1 s / 100 || 5 s / 20 || 10 s / 10 || adjustable from 1 to 10 s
Discrete Input Typelogic LI1, LI2, BOOST) stop, run and boost on start-up functions <= 8 mA 27 kOhm
Compatibility CodeATS01N2
Operating Positionvertical +/- 10 degree
Width45 mm
Discrete Input Logicpositive LI1, LI2, BOOST < 5 V <= 0.2 mA > 13 V, >= 0.5 mA
Tightening Torque0.5-0.5 N.m || 1.9-2.5 N.m
Discrete Output Typeopen collector logic LO1 end of starting signal || relay outputs R1A, R1C NO
Specifications
- Current Consumption
- 30 A at nominal load
- Range Of Product
- Altistart 01
- Motor Power Kw
- 0.75 kW, 3 phases 200...240 V || 1.1 kW, 3 phases 200...240 V
- Power Dissipation In W
- 4 W at full load and at end of starting || 64 W in transient state
- Icl Starter Rating
- 6 A
- [Us] Rated Supply Voltage
- 200...240 V - 10...10 %
- Motor Power Hp
- 1 hp, 3 phases 200...240 V || 1.5 hp, 3 phases 200...240 V
Product Destinationasynchronous motors
Product Or Component Typesoft starter
Network Number Of Phases3 phases
Utilisation CategoryAC-53B EN/IEC 60947-4-2
Type Of Startstart with voltage ramp
Product Specific Applicationsimple machine
Device Short NameATS01
